Cold Box vs Inorganic Core Shooting Machine: Which Process Should You Choose?

Foundries today navigate a rapidly shifting industrial landscape. Tightening environmental regulations surrounding volatile organic compounds (VOC emissions) increasingly clash against the relentless demand for high-volume, cost-efficient core production. Foundry managers currently face a critical operational dilemma. You must choose between the proven, high-speed reliability of the traditional cold box process and the environmentally compliant, yet structurally different, inorganic process. Balancing these competing priorities requires careful technical analysis. Making the wrong choice can disrupt production lines and delay critical client deliveries. This article provides a realistic, evidence-based comparison of both technologies. We will explore their distinct operating mechanisms, cycle time impacts, casting quality outcomes, and retrofitting challenges. You will learn how to evaluate these systems effectively to guide your next facility upgrade and ensure long-term production success.

Key Takeaways

• Cold Box remains the industry standard for high-speed, complex core production with excellent breakdown properties, but requires intensive emission management.

• Inorganic processes eliminate VOCs and odor, significantly improving workplace safety, but demand heated tooling and higher energy inputs.

• The choice ultimately hinges on your casting alloy (aluminum vs. iron), local environmental compliance pressures, and willingness to invest in tooling modifications.

• Upgrading to an Inorganic Core Machine is not a simple 1:1 drop-in replacement for a Cold Box Core Shooter Machine; it requires a holistic review of your sand preparation and reclamation systems.

1. Core Operating Mechanisms Compared

Understanding how these machines cure sand mixtures forms the foundation of any equipment evaluation. Each system utilizes completely different chemical and physical mechanisms to achieve core strength. This fundamental difference drives all subsequent operational requirements in your facility.

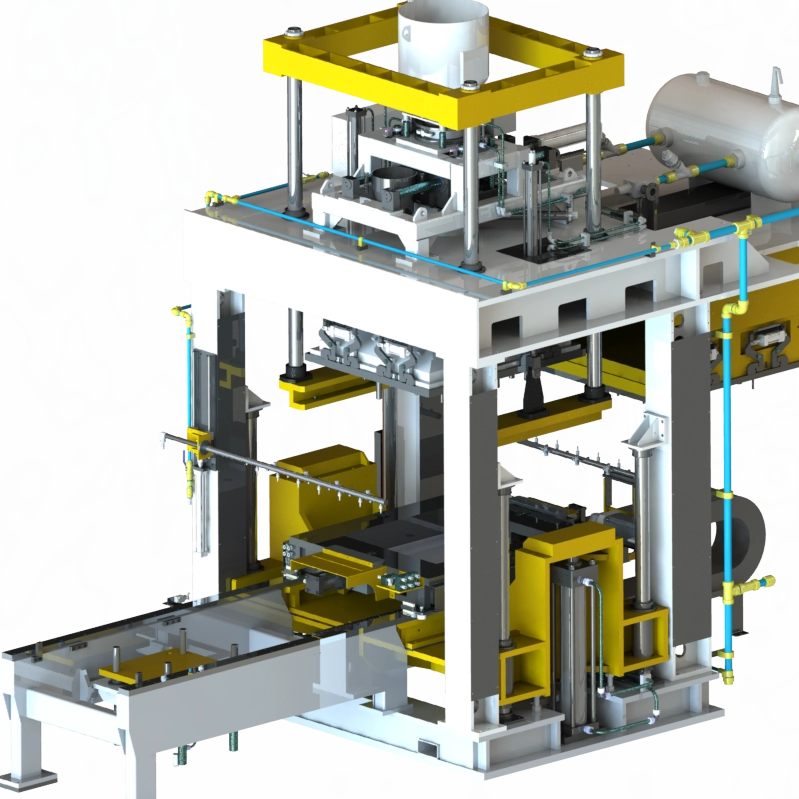

A standard Cold Box Core Shooter Machine relies on a polyurethane resin system. The machine injects this sand mixture into a core box at ambient room temperature. To cure the core, the system introduces a catalytic amine gas. Foundries typically use DMEA or DMIPA gases for this step. The gas passes through the sand, triggering an instantaneous chemical reaction. The core hardens immediately upon contact. This rapid, room-temperature curing makes the process highly predictable and incredibly fast.

Conversely, an Inorganic Core Machine operates on entirely different principles. It utilizes a silicate-based liquid binder system. This binder does not cure via chemical gas catalysts. Instead, it cures through targeted dehydration. The machine employs heated tooling, operating similarly to the traditional hot box principle. As the sand enters the heated core box, moisture begins to evaporate. The machine then purges hot air through the core to accelerate this dehydration process. The silicate binder solidifies as the water leaves the mixture.

Implementation realities vary significantly between these two technologies. Cold box operations heavily prioritize gas generation and subsequent extraction. You must manage complex chemical scrubbing systems to capture the volatile amine gases safely. Inorganic operations avoid gas scrubbing completely. However, they require absolute precision in thermodynamic control. You must balance tooling temperatures and hot air venting flawlessly. Any failure in temperature control causes condensation inside the core box, which ruins core integrity.

2. Production Efficiency & Cycle Times

Throughput and operational uptime remain primary concerns for foundry managers. Your chosen core making process directly impacts your daily production volume. Both systems offer distinct advantages and face unique bottlenecks during continuous operation.

When evaluating curing speed, cold box technology usually wins. The instantaneous chemical curing allows for remarkably fast cycle times. You can produce massive, highly complex cores rapidly. The amine gas permeates the sand matrix in seconds. Operators can extract the core and immediately shoot the next one. This speed makes cold box ideal for high-volume automotive and industrial applications.

Inorganic processes face inherent thermal bottlenecks. Because curing relies on heat transfer, cycle times depend on core geometry. Heat must penetrate from the tooling walls into the center of the sand mass. Thick-walled cores require much longer dwell times to cure fully. Foundries often deploy advanced heated purging techniques to force hot air deeper into the core. Despite these advancements, producing massive, solid cores organically often takes longer than the cold box equivalent.

Tooling maintenance directly affects your overall equipment effectiveness (OEE). Every machine requires downtime for cleaning and calibration. Cold box tooling generally requires less frequent intervention during a shift. The room-temperature operation keeps vents relatively clean over thousands of cycles.

Inorganic machines present different maintenance challenges. As water evaporates from the silicate binder, steam moves through the core box vents. This moisture can quickly form condensate buildup on cooler sections of the tooling. Sand dust sticks to this condensate, clogging the vents. Operators must pause production to clean these vents frequently. If left uncleaned, clogged vents restrict the hot air purge, resulting in uncured, brittle cores.

• Best Practice: Implement a proactive tooling maintenance schedule. Clean inorganic core box vents proactively every few hours to prevent severe blockages and ensure consistent hot air flow.

• Common Mistake: Pushing inorganic curing cycles too fast. Removing a core before complete dehydration leads to internal weakness and subsequent catastrophic failure during metal pouring.

3. Casting Quality and Shakeout Performance

The core machine you select directly impacts your final cast product. Different binder systems behave uniquely when exposed to molten metal. These behaviors influence dimensional accuracy, surface finish, and the physical effort required to remove the core.

Dimensional accuracy heavily favors cold box systems in many scenarios. Because the tooling operates at room temperature, you eliminate thermal expansion variables. The core box dimensions remain perfectly stable throughout the shooting and curing phases. This stability yields highly accurate cores, which is vital for thin-walled castings requiring tight tolerances.

Inorganic tooling must heat up and expand. Engineers must calculate thermal expansion rates meticulously during the tooling design phase. While modern CNC machining accounts for this expansion, it introduces a layer of complexity absent in cold box operations.

Surface finish and gas defects present a completely different narrative. This is where inorganic technology truly excels. Polyurethane resins in cold box cores burn violently upon contact with molten metal. This combustion generates massive amounts of gas. If the mold venting is inadequate, this gas pushes back into the liquid metal, causing severe porosity defects.

Inorganic cores generate zero combustion gases during pouring. The silicate binder merely releases a tiny amount of residual water vapor. This drastic reduction in gas evolution significantly improves the casting surface finish. You eliminate gas porosity defects almost entirely. Aluminum die casting facilities find this characteristic exceptionally beneficial for producing complex engine blocks.

Breakdown and shakeout realities often dictate the final equipment choice. Cold box resins burn out easily during pouring. The intense heat of iron or steel degrades the chemical binder completely. After the casting cools, the sand simply pours out of the internal cavities. Shakeout requires very little mechanical effort.

Inorganic binders do not burn out. The silicate structure transforms into a rigid, glass-like matrix when exposed to heat. In lower-temperature pours like aluminum, the binder retains significant strength. Shakeout becomes considerably harder. Foundries often deploy aggressive mechanical decoring techniques. Many facilities resort to water-based decoring to dissolve the silicate and flush the sand out.

4. Environmental Compliance & Workplace Safety

Environmental regulations drive much of the recent innovation in foundry equipment. Understanding the compliance landscape helps future-proof your facility against tightening restrictions and protects your workforce.

Operating a traditional Cold Box Core Shooter Machine requires extensive environmental infrastructure. The amine gas used for curing is highly toxic and odorous. You must install dedicated, elaborate chemical scrubbers to capture this gas before exhausting air outside. Your facility must handle these hazardous materials daily. Operators must wear extensive personal protective equipment (PPE). You also face ongoing costs for safely disposing of the liquid chemical waste generated by the scrubbers.

Inorganic technology offers unmatched regulatory future-proofing. An Inorganic Core Machine produces only water vapor during both curing and pouring phases. The process completely eliminates VOC emissions. It generates no benzene, toluene, or xylene (BTX). The pouring floor remains entirely free of toxic smoke and foul odors.

This elimination of VOCs drastically improves workplace safety. Operators work in a cleaner, clearer environment. You avoid the constant threat of regulatory fines associated with emission limits. Air quality permits become significantly easier to obtain and maintain.

However, compliance shifts burdens rather than eliminating them entirely. You trade chemical waste management for increased energy consumption. Heating the heavy metal core boxes requires continuous electrical power. Generating hot air for purging demands robust heating elements. You must weigh the environmental benefits against this increased baseline energy usage. While you eliminate the scrubber chemicals, you will see a noticeable increase in your facility's power draw.

5. Retrofitting Risks and Process Integration

Transitioning from traditional methods to newer processes requires careful facility planning. Simply swapping out a machine rarely works. You must evaluate how the new technology integrates into your existing sand preparation and tooling infrastructure. Proper planning mitigates significant operational risks.

Tooling modifications represent the most critical integration challenge. You cannot simply place a cold box tool into an inorganic machine. Transitioning to inorganic processes requires completely redesigning your core boxes. Machinists must bore channels into the metal to accommodate electrical heating cartridges. They must map out optimal thermal distribution to prevent cold spots. Furthermore, the venting system requires total optimization. You must direct the hot purge air evenly through the sand mass to ensure uniform dehydration. Modifying an entire inventory of existing tooling demands extensive engineering resources and downtime.

Sand reclamation presents another major technical hurdle. Foundries successfully reclaim cold box sand using standard mechanical attrition. The mechanical friction easily strips the brittle, burned-out resin from the sand grains. Reclaiming inorganic silicate sand proves far more difficult.

The silicate binder fuses tightly to the sand grains during casting. Mechanical reclamation alone often fails to remove this residual binder entirely. If you reuse this poorly reclaimed sand, the residual alkalinity interferes with subsequent binder mixing, destroying core strength. Foundries utilizing inorganic processes often must install specialized thermal reclamation units. Some facilities incorporate unique chemical additives during mixing to neutralize the residual silicate. You must audit your current sand plant capabilities before committing to an inorganic upgrade. Failing to plan for sand reclamation often leads to massive scrap rates during initial production runs.

6. Decision Framework: Which Equipment Fits Your Foundry?

Choosing the correct equipment requires aligning machine capabilities with your specific production goals. Neither technology serves as a universal solution. You must evaluate your alloy, volume, and existing infrastructure.

Choose a Cold Box Core Shooter Machine if:

1. You cast heavy iron or steel. The high pouring temperatures burn out the resin perfectly, requiring easy shakeout.

2. Your production demands extremely fast cycle times for massive, continuous core volumes.

3. Your existing tooling inventory is vast. Retrofitting hundreds of tools with complex heating elements proves logistically impossible for your engineering team.

4. You already possess a robust, fully permitted amine gas scrubbing infrastructure.

Choose an Inorganic Core Machine if:

1. You specialize primarily in aluminum castings. The zero-gas process eliminates porosity in critical components like automotive cylinder heads.

2. You operate in a region facing strict, escalating environmental emission mandates.

3. You are building a new greenfield facility. You can completely bypass the installation of hazardous chemical scrubbing infrastructure.

4. Your facility possesses the water-based or aggressive mechanical decoring equipment necessary for silicate shakeout.

To summarize these differences clearly, review the structural comparison below.

Core Making Technology Comparison Chart

Conclusion

Navigating the choice between these two distinct technologies demands rigorous internal evaluation. Neither machine is universally superior. The choice represents a necessary engineering tradeoff. You must weigh the production speed and flexibility of cold box systems against the environmental compliance and casting cleanliness of inorganic systems.

Before making a final equipment decision, we strongly recommend conducting a physical pilot test. Partner with a core supplier or equipment manufacturer to shoot sample cores. Use your specific sand type and actual part geometry. Pour test castings to evaluate both gas defects and shakeout difficulty. This real-world data proves invaluable.

Take action today by organizing a cross-functional audit of your facility. Consult with an external equipment engineer to review your current venting, tooling, and sand reclamation capabilities. Understanding your baseline infrastructure ensures your next core machine upgrade delivers maximum operational efficiency.

FAQ

Q: Can I convert my existing Cold Box Core Shooter Machine to an Inorganic Core Machine?

A: It is technically possible on certain modern models. You must upgrade the gassing plate to a high-capacity hot air purge system. You also need to modify all core boxes to accept heating elements. However, this conversion usually requires significant control system overhauls to manage thermodynamics safely. Consult your manufacturer before attempting retrofits.

Q: Does the inorganic process reduce tool life?

A: Yes, it frequently does. The constant thermal cycling stresses the metal tooling. Additionally, the alkaline nature of silicate binders can accelerate surface wear on standard aluminum core boxes. You will likely experience a shorter tool lifespan compared to running room-temperature cold box processes.

Q: Are core storage requirements different for inorganic cores?

A: Yes, they differ significantly. Inorganic cores are highly hygroscopic, meaning they absorb moisture from the air rapidly. They require strict, climate-controlled storage to prevent severe strength degradation. Conversely, traditional cold box cores remain generally much more resilient when exposed to ambient humidity.
