Views: 0 Author: Site Editor Publish Time: 2026-07-30 Origin: Site
Foundries operate under strict margins where minor inefficiencies in cycle times or scrap rates compound into significant revenue losses. Manual and semi-manual gravity die casting processes are inherently bottlenecked by human fatigue, inconsistent pouring parameters, and high thermal variability. These limitations lead to unpredictable yield rates and shortened die lifespans in harsh foundry environments. Transitioning from standalone manual stations to a fully automated production line—utilizing robotics, synchronized rotary tables, and precise tilting mechanisms—shifts the operational model from labor-dependent variability to engineered repeatability. We see this shift directly impact the bottom line by stabilizing thermal management and drastically reducing scrap rates across complex production runs. Upgrading your facility removes the guesswork from molten metal handling and establishes a baseline of continuous, predictable output.
Cycle Time Reduction: Integrating robotic extraction and automated ingot feeding eliminates manual handling delays, significantly compressing overall cycle times.
Quality and Yield: Automated pouring and tilting mechanisms reduce turbulence and temperature variation, directly lowering scrap rates and extending die life.
Architecture Selection: Choosing between linear, carousel, or specialized tilting lines depends heavily on production volume, part geometry, and available facility footprint.
Implementation Reality: Successful deployment requires rigorous facility planning, including utility distribution (air, gas, electric) and proactive maintenance protocols to withstand harsh environmental conditions.
Evaluating foundry efficiency requires establishing strict baseline metrics. Success hinges on cycle time consistency, scrap percentage, labor utilization, and die longevity. Manual operations introduce unpredictable variables into each of these metrics. Operators experience fatigue, leading to extended extraction times and irregular pouring speeds. This inconsistency directly inflates cycle times and drives up the scrap percentage due to misruns, cold shuts, and porosity. When you rely on manual labor for repetitive, high-heat tasks, you accept a certain level of operational instability.
Thermal variation remains the most destructive element in manual casting operations. Inconsistent pouring delays cause severe fluctuations in die temperatures. This thermal cycling accelerates premature thermal fatigue and induces micro-cracking in die steel, particularly in common tooling materials like H13. Dimensional inaccuracies in the cast parts inevitably follow as the die degrades. Automated control systems eliminate these fluctuations. Maintaining strict thermal equilibrium preserves the structural integrity of cast iron and steel molds, extending their operational lifespan significantly. You get more shots per die and spend less time on tooling repair.
Relying on human operators in high-temperature environments presents severe limitations and safety risks. Manual extraction creates immediate production bottlenecks. Heavy castings require physical exertion, slowing down the entire line as operator fatigue sets in throughout a shift. Furthermore, manual molten metal handling carries inherent safety liabilities. Exposure to radiant heat, splashing aluminum, and toxic fumes creates a hazardous work environment that automation readily mitigates. Removing operators from the immediate pour zone reduces injury rates and lowers insurance liabilities.
Operational Metric | Manual Process Characteristics | Automated Process Characteristics |
|---|---|---|
Cycle Time | Highly variable, dependent on operator fatigue | Strictly consistent, engineered rhythm |
Die Temperature | Fluctuates wildly between pours | Maintained within a tight thermal window |
Scrap Rate | High incidence of misruns and porosity | Minimized through controlled pouring dynamics |
Tooling Lifespan | Shortened by thermal shock and micro-cracking | Extended via consistent thermal management |
Selecting the correct automation architecture dictates the ultimate efficiency of the foundry. Primary configurations address different production volumes, facility layouts, and part complexities. Mapping out these approaches allows foundries to align their capital investments with specific operational goals. You cannot force a high-mix production schedule onto a rigid carousel line without suffering massive downtime during changeovers.
Horizontal parting lines dominate the production of flat, wide, or multi-cavity castings. An Automated Horizontal Gravity Die Casting Production Line utilizes mechanisms that open and close the die halves along a horizontal plane. This setup simplifies core placement and part ejection for specific geometries. Foundries typically deploy these machines in either linear or carousel configurations depending on their floor space and volume requirements.
Linear configurations arrange machines in a straight line, serviced by a gantry or a track-mounted robot. This setup suits facilities with narrow footprints and allows for modular expansion. You can add machines to the line as demand increases. Carousel configurations utilize a rotational table to index machines through dedicated pouring, cooling, and extraction zones. A standard 4-station rotational table integrates high-durability rotary distributors for air, gas, and electricity. This central utility distribution manages multiple casting machines simultaneously, maximizing floor space and ensuring continuous, unbroken cycle rhythms.
Complex geometries require advanced fluid dynamics during the pouring phase. An Industrial Tilting Gravity Die Casting Production Line utilizes programmable tilt pouring mechanics to manage molten metal flow. The machine starts at a tilted angle and gradually returns to horizontal as the metal enters the die cavity. This mechanical action mimics the careful hand-pouring techniques used by master foundrymen but executes it with robotic precision.
Controlling the exact angle and speed of the pour minimizes metal turbulence. Reducing turbulence prevents the formation of oxide inclusions and trapped gas porosity. This controlled fill profile significantly improves the mechanical properties of complex castings, ensuring higher density and superior surface finish. Tilting lines excel in producing structural automotive components where metallurgical integrity remains non-negotiable. If you cast suspension parts or pressure-tight manifolds, tilt pouring is the standard.
Connecting specific automated features to measurable business outcomes clarifies the value of upgrading foundry infrastructure. Every robotic movement and sensor integration must directly influence cycle times, scrap reduction, or labor utilization. You do not install robots for aesthetics; you install them to move metal faster and cleaner.

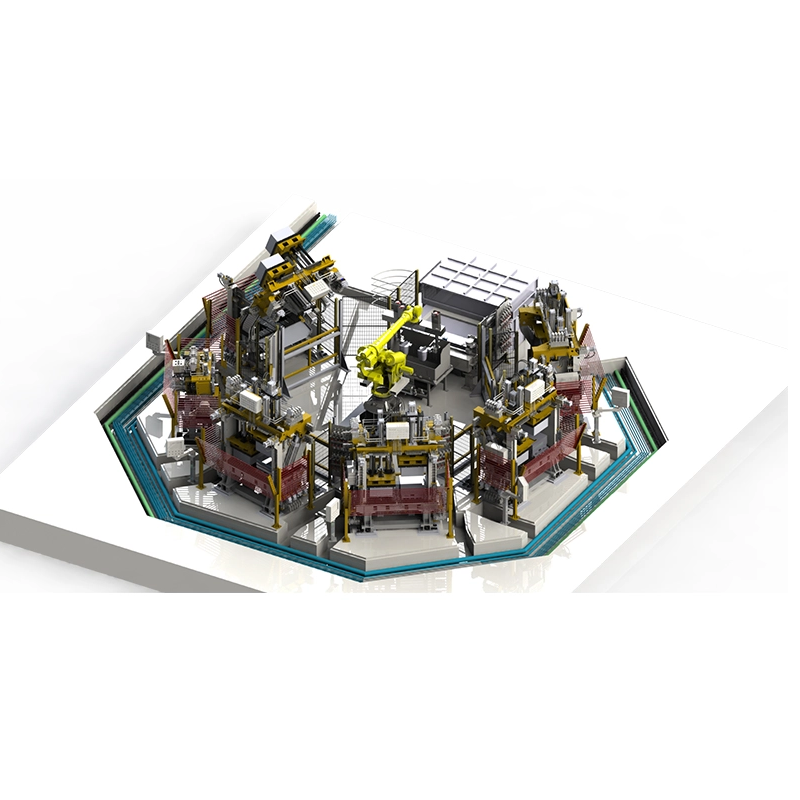

Modern foundries deploy 6-axis robots operating within self-contained "Robot Islands." These robotic cells standardize the extraction of finished parts, eliminating the variable delays caused by human operators. The robot grips the casting with exact precision, ensuring no damage occurs during ejection from the die. Payload capacities for these robots often exceed 150kg, allowing them to handle massive multi-cavity shots with ease.
Integrating immediate prefinishing tasks within the same automated cell further compresses production timelines. The robot extracts the part and immediately presents it to automated stations for core removal, riser cutting, and initial deburring. Consolidating these steps reduces work-in-progress inventory and minimizes the floor space required for secondary machining operations. You move from raw molten metal to a semi-finished casting within a single, guarded cell.
Automated ladling and synchronized pouring parameters guarantee exact volumetric dosing. The system delivers the precise amount of molten metal required for each shot at a consistent flow rate. This precision eliminates short pours and excessive flashing, directly reducing the scrap rate. The pouring sequence typically follows these programmed steps:
The automated ladle dips into the holding furnace, utilizing a laser sensor to detect the exact metal level.
The ladle retracts and moves to the pouring basin, skimming surface dross if equipped with a skimmer attachment.
The system initiates the pour, matching the flow rate to the specific gating design of the die.
Upon completion, the ladle returns to the home position while the die cooling sequence begins.
Automated ingot feeding plays a critical role in maintaining metal quality. Dropping cold ingots manually into a holding furnace causes severe thermal shock to the molten bath, leading to temperature drops and localized freezing. Automated feeders lower pre-heated ingots into the melt at controlled intervals. This process maintains precise holding furnace levels and ensures the metal remains at the optimal pouring temperature.
Strict cycle rhythms depend on automated die closing and opening sequences. Hydraulic or servo-driven toggles execute these movements with high speed and precise locking force. This consistency prevents die flashing and ensures dimensional accuracy across thousands of cycles. You avoid the dimensional drift that occurs when manual clamps loosen over a shift.
Integrated die cooling and heating systems maintain optimal thermal equilibrium. Thermocouples embedded in the tooling monitor temperatures in real-time. The system automatically triggers cooling water or heating elements to keep the die within a tight temperature window. This thermal management prevents hot spots, reduces soldering, and ensures greater repeatability for every casting. A well-managed thermal cycle is the foundation of a low scrap rate.
Evaluating the financial and operational trade-offs of automation requires a structured framework. Foundries must balance initial costs against long-term efficiency gains, facility constraints, and production flexibility. You have to look at your order book and decide what type of machine fits your actual production reality.
Production Architecture | Optimal Production Volume | Part Complexity | Footprint Requirement |
|---|---|---|---|
Linear Production Line | Medium to High | Low to Medium | Narrow, Rectangular |
Carousel (Rotational Table) | High (Low-Mix) | Low to Medium | Square, Centralized |
Tilting Production Line | Medium | High (Structural) | Flexible, Cell-Based |
Deploying a modern Gravity Die Casting Machine requires a high initial capital expenditure. Foundries must weigh this CapEx against long-term operational savings. Automated lines drastically reduce direct labor costs by replacing manual pourers and extractors. Furthermore, the reduction in scrap rates and decreased energy waste from optimized melting and holding cycles accelerate the payback period. Most facilities achieve ROI within 18 to 36 months based on scrap reduction and increased throughput alone. You stop paying to remelt bad castings.
Automation introduces a trade-off between flexibility and raw throughput. High-mix, low-volume production requires frequent die changes. On highly integrated automated lines, these changeovers cause significant downtime. Conversely, low-mix, high-volume production excels on carousels and linear lines. Foundries must analyze their order books to determine if dedicated automated cells or flexible, quick-change robotic stations offer the best operational fit. If you change dies three times a shift, a massive carousel will kill your efficiency.
Upgrading to automation impacts existing tooling. Traditional cast iron or steel molds designed for slow, manual processes may not withstand the faster, more aggressive cycle times of an automated line. Foundries must evaluate the cost implications of retrofitting existing dies with enhanced cooling channels and robust ejector systems to handle increased thermal and mechanical loads. You cannot put a 20-year-old manual die on a high-speed automated machine and expect it to survive.
Installing and running automated lines in existing foundries presents practical challenges. Proactive risk mitigation ensures the new equipment survives the environment and delivers the projected efficiency gains. You have to prepare your facility before the trucks arrive with the equipment.
Standard industrial robots fail rapidly in foundries. Automation requires specific environmental survivability features. Robots must carry IP67 or IP69 protection ratings to withstand high-pressure washdowns and fine particulate ingress. Heat-resistant casting jackets protect sensitive cabling from radiant heat and molten splashes. Pressurized wrists exclude abrasive aluminum oxide dust from destroying internal gears and bearings. If you buy a standard assembly-line robot for a foundry, you will replace it within a year.
Automated lines demand specific spatial requirements. Robotic envelopes require extensive safety fencing, while rotational tables demand a large, centralized footprint. Foundries must conduct accurate 3D spatial mapping before installation. You need to account for forklift access, maintenance clearances, and material flow.
Robust infrastructure prevents catastrophic line stoppages. Automated cells require high-volume compressed air, stable gas lines for die heating, and high-amperage electrical distribution. Upgrading facility utilities prior to installation prevents voltage drops and pneumatic pressure losses that disrupt automated cycle rhythms. A drop in air pressure during a die open sequence will halt the entire line.
Automation shifts the workforce dynamic from manual labor to technical oversight. Operators must upskill to manage PLC interfaces, troubleshoot robotic faults, and monitor thermal data. Foundries must invest in comprehensive training programs during the commissioning phase. You are replacing muscle with technical troubleshooting skills.
Preventative maintenance becomes critical. Harsh, abrasive foundry conditions degrade sensors and mechanical joints rapidly. Establishing strict maintenance protocols protects the capital investment and ensures maximum uptime. Follow a rigid schedule to keep the line moving.
Daily: Clean all optical sensors and laser levels to prevent false readings from aluminum dust.
Weekly: Lubricate all toggle mechanisms and inspect hydraulic lines for heat degradation.
Monthly: Conduct thermal imaging of electrical cabinets to identify failing contactors or overloaded circuits.
Quarterly: Recalibrate robotic pathing and verify the accuracy of the automated ladling system.
Automated pouring generates concentrated smoke and fumes. Integrating automated fume extraction hoods directly over the pouring and cooling zones maintains air quality and complies with occupational health standards. Safety compliance requires robust physical barriers. Integrating safety interlocks on access gates and deploying light curtains around active robotic cells protects personnel from automated movements and pinch points. You cannot bypass safety circuits in an automated foundry cell.
While the upfront investment remains substantial, automating gravity die casting operations represents a necessary evolution for modern foundries. Shifting away from manual processes eliminates the variables of human fatigue and inconsistent thermal management. Foundries that adopt these technologies achieve strict repeatability, significantly higher throughput, and reduced dependency on scarce manual labor. You stabilize your process and secure your production capacity.
Decision-makers must align the equipment architecture with their specific production profiles. Select a horizontal line configuration for high-volume runs of simpler geometries where raw throughput dictates profitability. Opt for a tilting production line when manufacturing complex, structural parts that demand stringent metallurgical integrity and minimal porosity.
Take the following actions to initiate the automation upgrade:
Execute a comprehensive cycle-time and scrap audit on all current manual lines to establish baseline metrics.
Categorize your existing tooling inventory to determine which dies require thermal or mechanical retrofitting for automated cycles.
Request a spatial and utility feasibility study from a specialized foundry automation integrator to map out facility requirements.
Develop a targeted upskilling program to transition current manual operators into technical supervisory roles.
A: Most foundries achieve a full return on investment within 18 to 36 months. This timeline depends on the reduction of scrap rates, decreased labor costs, and the overall increase in production throughput compared to previous manual operations.
A: Programmable tilt pouring controls the angle and speed of the molten metal entering the die. This controlled flow minimizes turbulence, which prevents oxide inclusions and trapped gas porosity, resulting in superior mechanical properties.
A: Yes, but it requires engineering modifications. Manual dies often need upgraded internal cooling channels, automated ejector pin systems, and reinforced mounting points to handle the faster cycle times and mechanical forces of automated lines.
A: Linear lines arrange machines in a straight row, ideal for narrow facility footprints and modular expansion. Carousel lines use a rotational table to move machines through dedicated zones, maximizing throughput for high-volume, low-mix production in a centralized space.
A: Six-axis robots operate within automated cells to extract hot castings precisely. They immediately transfer the part to adjacent stations for core sand removal, riser cutting, and deburring, which drastically reduces work-in-progress inventory.
A: Foundry robots require IP67 or IP69 ratings to block dust and liquids. They utilize heat-resistant jackets to protect cables from molten splash and feature pressurized wrists to prevent abrasive particulates from damaging internal bearings.
A: Automation extends mold life by maintaining strict thermal equilibrium. Consistent cycle times and integrated cooling systems prevent the severe temperature spikes and drops associated with manual pouring, thereby reducing thermal fatigue and micro-cracking.
