Unpredictable core dimensions plague modern foundries. They lead directly to downstream casting defects. Foundries experience increased scrap rates. They also face excessive machining costs. Handling complex internal cavities requires immense precision. Parts like engine blocks or ductile iron components demand strict tolerances. Thermal distortion during core making represents a critical bottleneck here. Heat warps sand structures, ruining dimensional integrity.

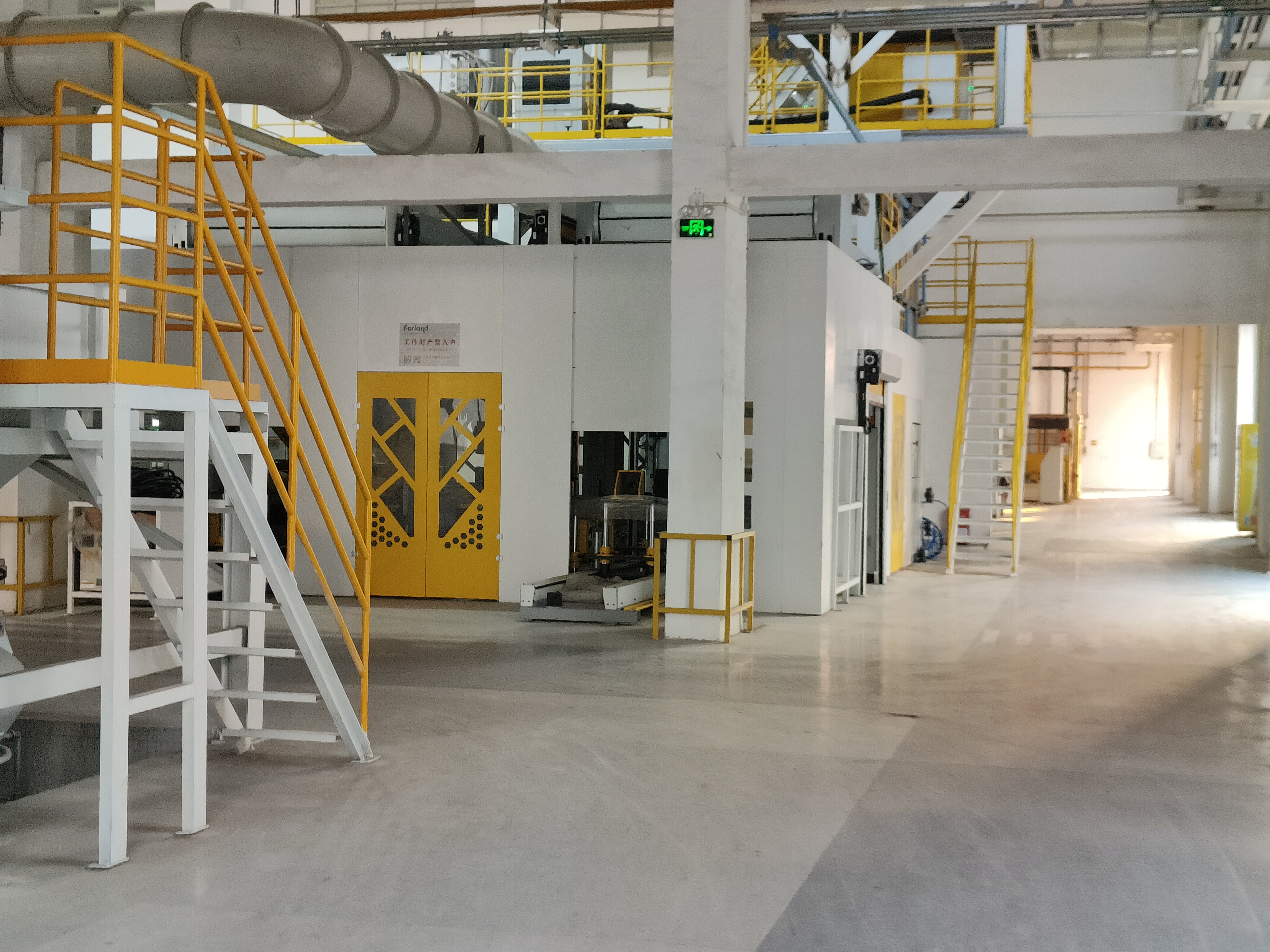

Introduce the cold curing process as your definitive solution. A Cold Box Core Shooter Machine serves as the industry standard. It entirely eliminates heat-induced warping. We will explore how this equipment works. You will learn the mechanics behind volumetric compaction. We also compare it against traditional heated methods.
Understandably, the machine only provides the baseline for repeatability. Actual accuracy heavily depends on proper tooling. Sand mixing and gas curing controls remain equally vital. Read on to master these variables.
Zero Thermal Distortion: Cold box curing occurs at room temperature, ensuring cores maintain exact tooling dimensions without expansion or shrinkage.
High-Density Compaction: Advanced pneumatic shooting mechanisms guarantee uniform sand distribution, eliminating weak spots in complex geometries.
Process Repeatability: Programmable Logic Controllers (PLCs) automate shooting pressure and catalyst gas injection, removing operator variance from cycle to cycle.
ROI Factor: The shift to a Cold Box Core Shooter justifies its capital expenditure through reduced scrap, faster cycle times, and superior surface finishes in final castings.

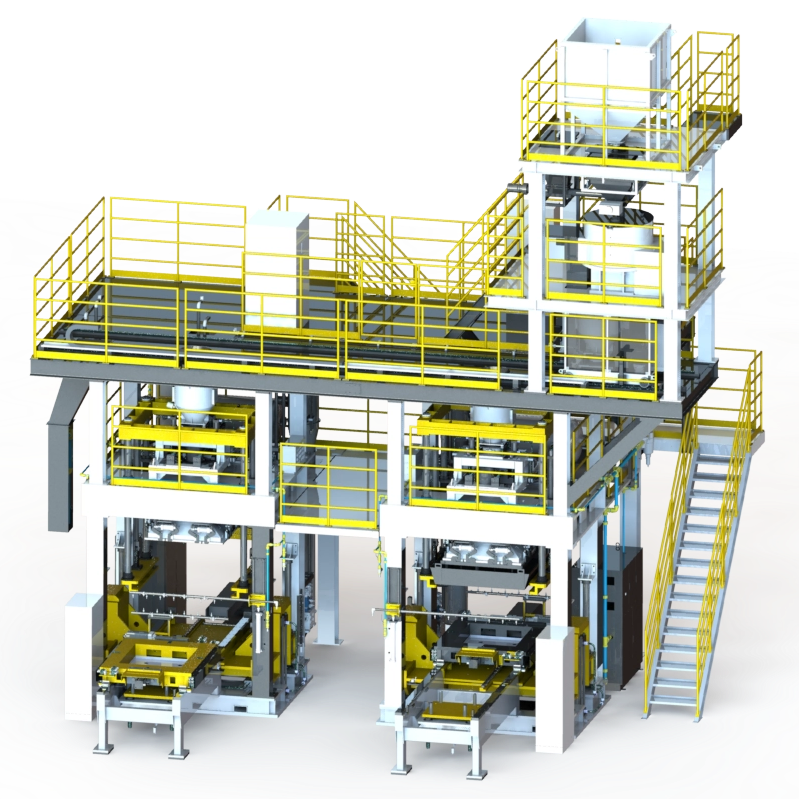

Volumetric sand compaction determines core integrity. You need precise shooting pressure to achieve it. Unregulated pressure causes severe casting defects. A specialized blow head controls this process. It fluidizes the sand-resin mixture instantly. Compressed air forces the mixture into the core box. The sand travels through designated blow tubes. It fills complex internal geometries completely. We rely on this uniform sand distribution. Uniform density eliminates weak structural points. Fragile cores break during automated handling. They also collapse prematurely during metal pouring.
Inadequate compaction creates surface defects. You might encounter blowholes in your castings. Metal penetration often occurs around soft sand areas. High-density compaction prevents these costly failures. Modern machines feature proportional pressure valves. You can program exact shooting parameters. The system stores these parameters for future use. This ensures every cycle replicates the last perfectly. Foundries producing engine blocks depend on this repeatability. Even thin-walled water jacket cores require extreme density. We trust pneumatic shooting mechanisms to deliver this consistency.
Chemical curing defines the cold method. Room-temperature processing offers massive advantages. We inject a catalytic gas into the tooling. Amine gas serves as the standard catalyst. The machine sequences this injection precisely. A generator vaporizes the liquid amine. The system pushes this vapor through the core box. It penetrates the porous sand structure immediately. The gas reacts with the polyurethane binder system. This triggers a rapid polymerization process. The sand hardens in mere seconds.
After curing, purging becomes necessary. The machine injects purge air into the tooling. Heated air accelerates the purging phase. It sweeps residual amine out of the core. We direct this exhaust to a chemical scrubber. Because the process uses no tooling heat, cores stay dimensionally stable. The core solidifies exactly to the mold dimensions. You bypass thermal expansion variables completely. Heated processes always battle tooling warpage. Cold curing eliminates this unpredictable shrinkage. You achieve true dimensional fidelity every single time.
Foundries constantly evaluate different core making methods. You must choose the right process for your application. We will contrast these established techniques. Hot box and shell core processes rely on heat. They heat the tooling to extreme temperatures. This heat transfers into the sand mixture. The binder cures thermally over several minutes. However, heat causes metal tooling to expand. The dimensions of your mold cavity change during heating. When the core cools, it shrinks slightly. This unpredictable warping ruins tight tolerances.
Conversely, cold curing prevents all thermal distortion. The core box remains at ambient temperature. You never worry about metal expansion. The core matches the cold tooling perfectly. We see massive reductions in dimensional scrap. This stability proves critical for complex automotive parts.
Process Capability Comparison
Feature | Cold Box Method | Hot Box Method | Shell Core Method |
|---|---|---|---|
Curing Trigger | Catalytic Gas (Amine) | Tooling Heat | Tooling Heat |
Dimensional Stability | Exceptional (No heat expansion) | Moderate (Prone to warpage) | Moderate (Prone to warpage) |
Cycle Time | Fast (Seconds) | Slow (Minutes) | Very Slow (Minutes) |
Energy Consumption | Low | High | Very High |
Cycle time dictates foundry profitability. Heated tooling requires long baking times. Shell cores might take several minutes to cure. Thick cores take even longer. Heat must penetrate all the way to the center. This slows down your entire production line. Heating heavy metal core boxes also consumes massive energy.
Cold curing happens almost instantly. The chemical reaction completes in seconds. The gas penetrates the entire core simultaneously. Core thickness does not limit curing speed. You eliminate lengthy heat-up times entirely. This allows for rapid, consistent cycle times. High-volume automated foundries rely on this speed. Furthermore, eliminating electric heaters saves significant energy. You lower your utility bills drastically.
Extreme thermal cycling destroys expensive tooling. Heating and cooling cycles cause metal fatigue. Tooling surfaces oxidize and degrade over time. Parting lines warp, causing flash on the cores. You must constantly repair or replace heated core boxes. This adds massive overhead to your operation.
Ambient temperature processing extends tooling life. You do not subject metal boxes to thermal stress. The precise parting lines remain intact for years. You experience less tooling wear. This contributes heavily to long-term consistency. You also spend less time cleaning baked-on resin. Cold boxes require far less scraping and maintenance. We highly value this prolonged tooling lifespan.
A perfect machine cannot fix bad inputs. We must address the realities of foundry implementation. Machine accuracy relies on precise chemistry. You must control your sand-to-resin ratios tightly. A slight deviation compromises tensile strength. Foundries typically use a two-part polyurethane binder. Part 1 is a phenolic resin. Part 2 is an isocyanate coreactant. You mix them into the sand before shooting.
If you use excessive resin, costs skyrocket. Excess resin also generates excessive gas during metal pouring. This causes blowholes in your castings. If you use too little resin, cores become brittle. They break during handling or extraction. We recommend using automated continuous mixers. They deliver perfectly metered binder quantities. You must also monitor sand temperature. Hot sand accelerates the chemical reaction prematurely. It reduces the bench life of your mixed sand. Keep your inputs consistent for the best results.
Watch out for these common operational mistakes:
Failing to calibrate resin pumps weekly.
Ignoring seasonal temperature changes in the sand silo.
Using degraded or expired catalyst gas.
Shooting pressure alone cannot fill a core box. You need optimal exhaust paths. The tooling must contain air before the sand enters. When sand shoots in, that air must escape. Proper core box venting provides this escape route. Without venting, you trap air inside the cavity. Air pockets cause incomplete sand filling. You get soft spots regardless of shooting power. We place screen vents strategically at the lowest points. We also vent tight corners and intricate features.
Consider these proven venting best practices:
Calculate the total vent area based on your blow tube area.
Use slotted vents to prevent sand grain clogging.
Inspect and clean vents during every shift change.
Place larger exhaust vents near the main parting line.
Well-designed tooling guarantees uniform compaction. Never overlook the science of core box exhaust.
Operating these systems introduces specific challenges. You must manage environmental and safety complexities. We prioritize operator protection and machine uptime. Amine gas presents notable hazards. It possesses a strong odor and irritates respiratory systems. Strict sealing protocols protect your operators. The core box must seal perfectly during gas injection. Machine clamping forces ensure a tight seal at the parting line.
You must integrate an efficient gas scrubber. The scrubber neutralizes the exhausted amine gas. Most foundries use an acid solution for this scrubbing process. Sulfuric acid reacts with the amine, forming a harmless salt. You extract the purged air directly to the scrubber tower. We mandate continuous monitoring of gas concentrations. Implement proper ventilation around the machine area. Enclosing the tooling area provides an extra safety layer. Managing this chemistry safely ensures smooth, compliant operations.
Neglecting maintenance degrades core quality rapidly. You need routine inspection schedules to prevent pressure drops. Pressure drops ruin volumetric compaction. Start by cleaning the shooting heads daily. Resin buildup restricts airflow and sand movement. Inspect blow tubes for wear and replace them promptly. Check all pneumatic seals around the blow plate. A leaking seal reduces your effective shooting pressure.
We also recommend checking your gas lines frequently. Liquid amine can crystallize in poorly maintained lines. This blocks the catalyst vapor from reaching the tooling. Inspect the proportional valves for smooth operation. Clean the exhaust vents on the tooling itself. Implementing preventative maintenance guarantees identical cycles. You preserve the machine's inherent accuracy over decades.
You must evaluate specific criteria before purchasing. We help you match machine features to your production demands. First, evaluate your tooling parting lines. Do you need a horizontal or vertical machine? Vertical parting suits tall, cylindrical cores. Horizontal parting works better for wide, flat cores. Next, consider your required core weight capacity.
Lightweight automotive parts need smaller, faster machines. A five-liter blow head might suffice perfectly. Heavy ductile iron castings demand massive sand volumes. You might require a hundred-liter blow capacity. Overloading a small machine leads to soft cores. Buying an oversized machine wastes capital and space. Match the blow volume precisely to your heaviest core box. We always suggest adding a ten percent safety margin. This ensures you never struggle with incomplete fills.
Modern operators rely on advanced control interfaces. Human-Machine Interfaces (HMIs) dictate daily usability. Look for modern Programmable Logic Controllers (PLCs). The PLC automates every sequence reliably. Ensure the interface offers unlimited recipe storage. You want to save specific pressures and gas times for every core box. Real-time pressure monitoring prevents defective cycles.
The system should alert you if pressure drops. Automated gas dosing prevents wasted amine. The machine should measure exactly how much gas enters. Advanced automation removes operator variance completely. It guarantees process repeatability across different shifts. You secure consistent quality regardless of who runs the machine. A highly automated Cold Box Core Shooter becomes an invaluable asset.
You now understand the mechanics behind superior accuracy. A high-quality shooter machine serves as a foundational investment. Foundries looking to scale production need this technology. It creates highly accurate, complex sand structures repeatedly. By eliminating tooling heat, you prevent thermal distortion entirely. Volumetric compaction ensures dense, robust sand structures. The chemical curing sequence delivers unmatched cycle speeds. You reduce scrap rates and lower machining costs drastically.
Take actionable steps today to upgrade your foundry. Conduct a detailed core weight analysis of your current production. Identify your most complex internal cavities. Consult with reputable equipment manufacturers immediately. Ask them for a tooling compatibility audit. Request a tailored machine quote based on your specific volumes. Embracing this room-temperature process secures your competitive edge. You will produce better castings with fewer defects.
A: Foundries typically mix silica sand with a two-part polyurethane binder system. The total resin addition usually ranges from 1.0% to 1.5% based on sand weight. You mix Part 1 (phenolic resin) and Part 2 (polymeric isocyanate) in a precise 50/50 or 55/45 ratio. Always consult supplier-specific datasheets, as optimal ratios depend heavily on sand grain shape, surface area, and desired tensile strength.
A: Yes, it is highly suitable for ductile iron casting. Ductile iron applications often feature complex internal geometries requiring strict dimensional tolerances. The room-temperature curing eliminates thermal distortion, ensuring extreme accuracy. Additionally, the polyurethane binder offers excellent collapsibility after pouring. This makes core removal significantly easier during the shakeout phase.
A: The cycle time is significantly faster than shell core machines. Shell cores require thermal baking, taking several minutes for heat to penetrate thick sand sections. Conversely, the cold method relies on an instant chemical reaction triggered by amine gas. Curing happens in seconds, drastically increasing hourly production output.
A: Managing amine gas requires strict safety protocols. Mandatory equipment includes integrated acid scrubbers to neutralize exhausted catalyst gas. You must install proper overhead ventilation and exhaust hoods. The machine requires sealed tooling enclosures to prevent gas leaks. Operators should also wear appropriate personal protective equipment, including safety glasses and respiratory masks when handling binder chemicals.
