Views: 88 Author: Site Editor Publish Time: 2026-05-18 Origin: Site
A Die Casting Machine is industrial equipment used to produce metal parts by filling reusable metal molds with molten alloy under controlled conditions. In modern foundry production, it may refer to a standalone machine, an integrated casting unit, or a complete automated production line. Common types include Low Pressure Die Casting Machines, horizontal gravity Die Casting Machines, and tilting gravity Die Casting Machines. Beyond pouring metal, the machine controls metal flow, filling stability, porosity risk, cooling behavior, and cycle efficiency, directly affecting product quality, dimensional stability, labor efficiency, and long-term production cost.
● A Die Casting Machine is industrial equipment that forms metal parts by guiding molten metal into a reusable die under controlled process conditions.
● Common industrial configurations include the Low Pressure Die Casting Machine, horizontal gravity Die Casting Machine, and tilting gravity Die Casting Machine.
● The right Die Casting Machine affects filling stability, porosity control, surface finish, and long-term production efficiency.
● A complete solution may include a single Die Casting Machine, a process unit, or a fully automated production line.
● Machine selection should be based on alloy type, part geometry, output goals, and automation requirements.
A Die Casting Machine shapes molten alloy inside a reusable metal die to produce repeated parts with stable geometry. Because it uses permanent tooling, it is suitable for serial production that requires consistency and controlled cycles.
In practice, the term may refer to a single casting machine or an integrated system including furnaces, cooling circuits, transfer devices, and extraction units. Different machine types are mainly distinguished by their filling method, such as low pressure filling or gravity filling.
A Die Casting Machine directly influences filling stability, cooling control, porosity risk, and dimensional accuracy. Even with the same mold, unstable pressure, mold movement, or metal transfer can lead to inconsistent casting quality.
For aluminum and other non-ferrous alloy castings, machine control is especially important because shrinkage, air entrapment, and oxide formation can affect part integrity. In automated production, the machine also determines cycle rhythm, scrap rate, and labor efficiency.
A standalone Die Casting Machine performs the basic mold filling and casting cycle, offering flexibility for moderate output or frequent product changes. A die casting unit adds connected systems such as temperature control, furnace interfaces, or extraction devices for better process stability.

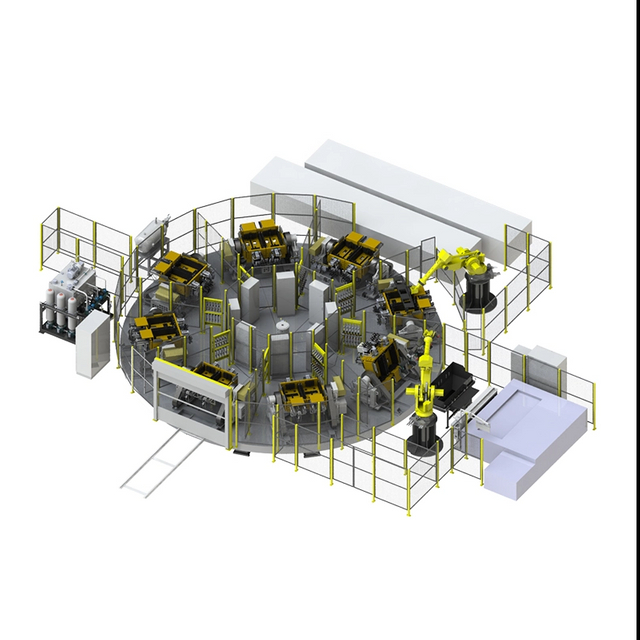

A production line links casting, melting, cooling, handling, inspection, and other stages into a coordinated workflow. It is better suited for high-volume production with stable throughput and reduced manual intervention.

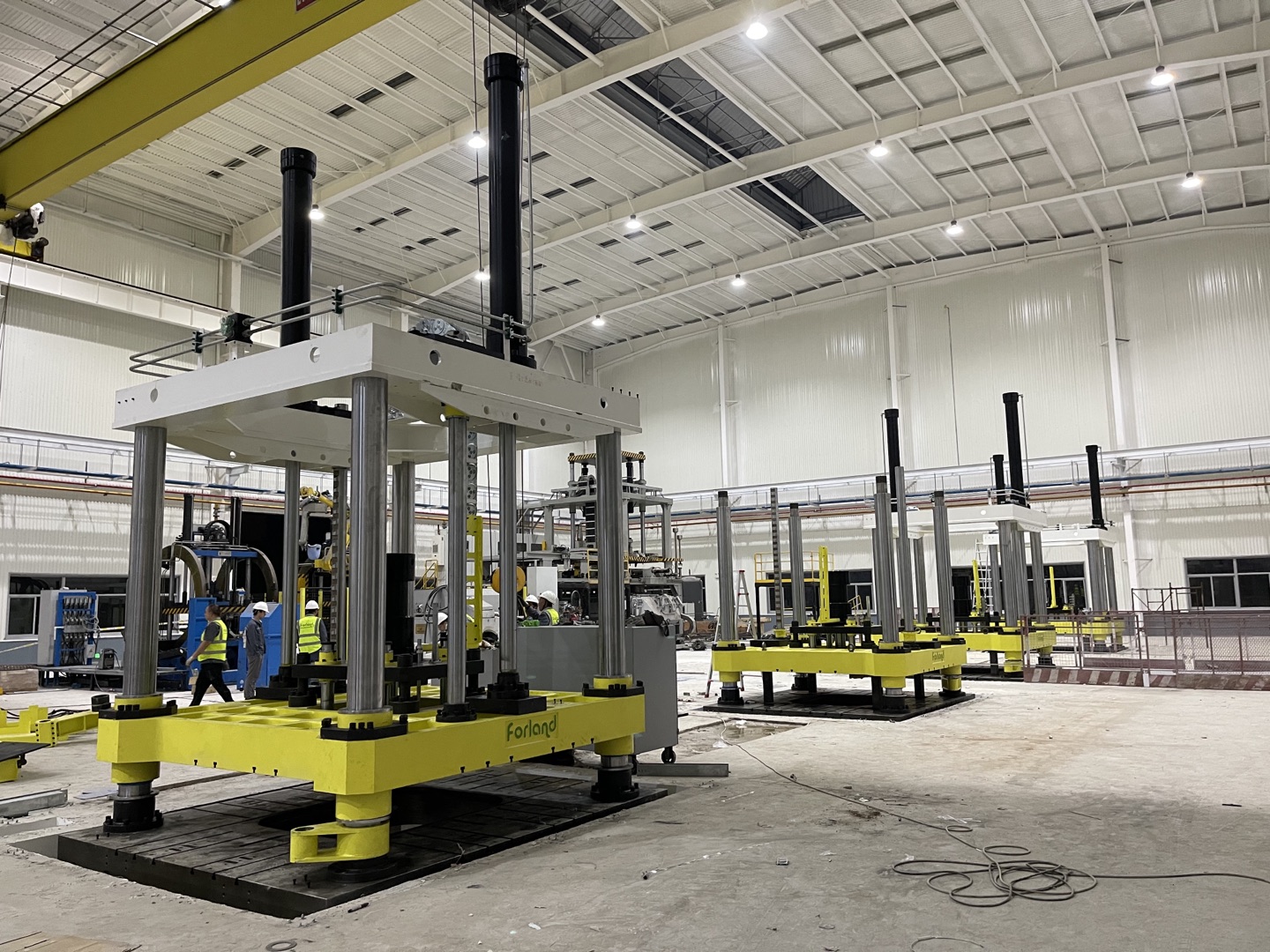

A Low Pressure Die Casting Machine uses controlled gas pressure to push molten metal from a furnace into the mold cavity, usually from the bottom upward. This stable filling method helps reduce turbulence, porosity, and internal defects, making it suitable for aluminum parts that require good density, dimensional consistency, and mechanical performance. Modern systems may include servo control, precise pressurization, mold cooling, furnace change functions, and automation interfaces.
A horizontal gravity Die Casting Machine fills the mold mainly by gravity through a controlled pouring system. It is commonly used for non-ferrous castings that require stable dimensions, good surface quality, and efficient production rhythm. Compared with pressure-based systems, it offers mechanical simplicity while still supporting smooth metal flow and reliable casting quality. Advanced versions may include intelligent controls, automated cycle management, heating and cooling coordination, and remote monitoring.
A tilting gravity Die Casting Machine improves gravity filling by changing the mold angle during pouring. This controlled tilting motion helps guide molten metal into complex cavities, especially parts with varying wall thicknesses or areas prone to air entrapment. Instead of increasing pressure, it optimizes filling through mold position control, supporting better metal distribution and reduced porosity risk. It also improves mold access during setup, inspection, and maintenance, making it useful for flexible non-ferrous casting production.
Machine Type | Filling Method | Typical Materials | Main Strengths | Typical Use Cases |
Low Pressure Die Casting Machine | Controlled pressure filling from furnace to mold | Aluminum alloys and selected non-ferrous metals | Stable filling, lower porosity tendency, good casting integrity | Structural castings, precision aluminum components, housings |
Horizontal Gravity Die Casting Machine | Gravity filling with horizontal mold arrangement | Aluminum, zinc, brass, bronze | Smooth pouring control, efficient cycle rhythm, good surface quality | Automotive parts, machinery components, general non-ferrous castings |
Tilting Gravity Die Casting Machine | Gravity filling with adjustable mold angle | Aluminum and other non-ferrous alloys | Better mold orientation control, adaptable filling path, suitable for complex geometry | Precision castings with complex flow paths or shape-sensitive filling needs |
The mold clamping and movement section is one of the most critical assemblies in any Die Casting Machine. It is responsible for opening, closing, and securing the die throughout each cycle while maintaining alignment under mechanical and thermal load. Poor clamping stability can lead to flash, mold wear, and dimensional inconsistency over long production runs.
In a robust Die Casting Machine, this system is engineered for repeatable motion and reliable positioning. Guide structures, frame rigidity, and drive response all influence how accurately the two mold halves meet and separate. Where cycle precision is required, even slight variation in mold movement can affect the surface quality and internal condition of the final casting.
The movement system also shapes the production rhythm of the Die Casting Machine. Fast movement is not enough on its own; the machine must also avoid vibration, impact imbalance, and positional error. Controlled motion contributes not only to part quality but also to tooling life and maintenance stability.
The feeding section determines how molten alloy reaches the die. In a Low Pressure Die Casting Machine, this includes the pressurization system, furnace connection, and metal transfer path from the holding chamber into the cavity. In a gravity Die Casting Machine, the pouring assembly and path design define how metal enters the mold under gravity with minimal disturbance.
This part of the Die Casting Machine has a direct impact on filling stability. If pressurization is uneven or pouring guidance is inconsistent, the metal flow may become turbulent, increasing the risk of oxide entrainment and porosity. A controlled feeding system therefore serves as a metallurgical safeguard as much as a mechanical function.
Advanced Die Casting Machine designs often use independent pressure curves, monitored pouring sequences, or programmable filling parameters. These features allow more precise adaptation to different part geometries and alloy behaviors. In production settings with multiple part variants, this flexibility can significantly improve repeatability.
The cooling system of a Die Casting Machine affects solidification rate, mold temperature balance, and cycle uniformity. Uneven cooling may cause dimensional drift, thermal fatigue in the mold, or localized defects in the casting itself. A stable cooling strategy therefore supports both product quality and tooling durability.
The control system coordinates every motion and timing point of the Die Casting Machine. It manages pressurization, mold movement, pouring logic, cooling sequences, alarm monitoring, and often process data recording. As automation levels increase, this control layer becomes essential for maintaining consistency across longer production periods.
Automation modules expand the capability of the Die Casting Machine beyond the core casting cycle. Part extraction, weighing, furnace exchange, mold cooling proportional control, and fault diagnosis are examples of functions that transform a machine into a more integrated production solution. In industrial operations seeking process standardization, these features are no longer optional in many applications.
One key advantage of a modern Die Casting Machine is repeatability. Once process parameters are validated, the machine can reproduce mold movement, filling behavior, and cycle timing with high consistency. This is especially important in serial production, where part-to-part variation must be controlled.
A stable Die Casting Machine also reduces the impact of operator differences on product quality. In continuous industrial production, where process windows are often narrow, stable machine performance helps lower defect variation across shifts. This is valuable when downstream machining or assembly requires dimensional uniformity.
Repeatability also improves traceability. When the Die Casting Machine maintains stable parameters, production teams can identify process deviations more quickly and manage quality in a more structured way.
A well-matched Die Casting Machine can improve filling stability, reduce turbulence, and lower the risk of common casting defects. Surface finish, internal soundness, and dimensional accuracy all benefit when molten metal enters the mold cavity in a controlled and predictable way.
In a Low Pressure Die Casting Machine, the controlled rise of molten metal into the mold can help reduce porosity. In a gravity Die Casting Machine, optimized pouring and mold orientation can also support stable metallurgical conditions for suitable part designs.
Lower defect risk improves downstream productivity. When the Die Casting Machine produces more consistent castings, inspection, rework, and machining demands can be reduced. Over time, this supports better operating efficiency and lower production waste.
A modern Die Casting Machine is increasingly used as part of an automated production system rather than as a standalone unit. It can be integrated with robotic handling, cooling systems, furnace control, and intelligent diagnostics to create a more synchronized workflow.
Automation improves machine utilization by reducing fragmented manual steps between casting stages. An integrated unit or production line keeps the process moving with fewer interruptions, which is useful where cycle balance and labor consistency are important.
Production efficiency is not only about speed. An efficient Die Casting Machine balances quality, uptime, changeover flexibility, and process control, supporting long-term manufacturing value.
The automotive sector is one of the most important application areas for the Die Casting Machine. Many aluminum and non-ferrous transportation parts require repeatable geometry, stable surface quality, and efficient mass production, making permanent mold casting a suitable process.
In automotive manufacturing, a Die Casting Machine must deliver high consistency because cast parts often enter machining, assembly, or safety-related systems. Even for non-critical components, dimensional variation can affect downstream operations. Therefore, machine stability is an important part of production quality control.
Both Low Pressure Die Casting Machine systems and gravity Die Casting Machine systems are used in this field, depending on the component design and performance requirements. Typical applications include wheels, housings, brackets, and structural parts, all of which require a proper match between machine capability and product demand.
Industrial equipment often uses cast housings, covers, support bodies, and functional metal parts made by a Die Casting Machine. These components usually need stable machining allowance, acceptable surface finish, and repeatable wall structure. A machine-based casting process provides better control than manual production methods.
For industrial parts, the Die Casting Machine must also match the manufacturer’s production model. Some factories need flexible equipment for multiple products, while others focus on repeated batches of the same part. The best machine configuration depends on both the casting design and the production pattern.
Where durability, workflow stability, and process discipline are important, a casting unit or automated line built around the Die Casting Machine can improve production continuity and overall efficiency.
Precision non-ferrous casting programs often use a Die Casting Machine when stable geometry and controlled surface quality are required. These programs may involve aluminum, zinc, brass, or bronze parts for specialized industrial or mechanical applications.
For precision casting, the machine must provide more than basic mold filling. Movement stability, cooling control, pouring behavior, and pressure control can directly influence final quality, especially when parts require machining, sealing, coating, or inspection.
In these applications, an integrated Die Casting Machine setup can reduce defects, improve cycle consistency, and support stable batch production.
A Die Casting Machine is the core equipment in permanent mold casting, affecting filling, cooling, dimensional stability, defect control, and production efficiency. Whether selecting a Low Pressure Die Casting Machine, a horizontal gravity Die Casting Machine, or a tilting gravity Die Casting Machine, the decision should match alloy type, part design, surface requirements, automation level, and output goals. For manufacturers considering standalone machines, units, or full production lines, technical fit is more important than category alone. Wuxi Forland Technology Co., Ltd. provides low pressure and gravity die casting equipment solutions.
A Die Casting Machine is used to produce metal parts by guiding molten alloy into a reusable die under controlled conditions. Its purpose is to create repeatable castings with stable geometry, consistent surface quality, and efficient cycle performance. Depending on the application, the Die Casting Machine may be used as a standalone system or as part of a larger casting unit or production line.
A Die Casting Machine commonly processes aluminum alloys and other non-ferrous metals such as zinc, brass, and bronze, depending on machine type and casting method. Material suitability depends on pouring behavior, thermal requirements, and part geometry rather than on alloy name alone. In industrial practice, the selected Die Casting Machine should always be matched to the alloy system and casting objective together.
A Die Casting Machine usually refers to the main casting equipment itself. A unit includes the machine plus related functional systems such as cooling, furnace interface, or handling equipment. A production line connects the Die Casting Machine with multiple automated process stages to support higher-volume and more integrated manufacturing.
