Foundries face constant pressure to increase casting precision while reducing energy costs and cycle times. The transition from thermal core making to cold-curing processes is often a critical step in scaling production. Many facilities struggle to balance high output demands against rising utility expenses and stringent dimensional tolerances. Relying on outdated heated tooling frequently leads to operational bottlenecks, casting warping, and systemic inefficiencies. You need a modern solution to solve these structural manufacturing issues.

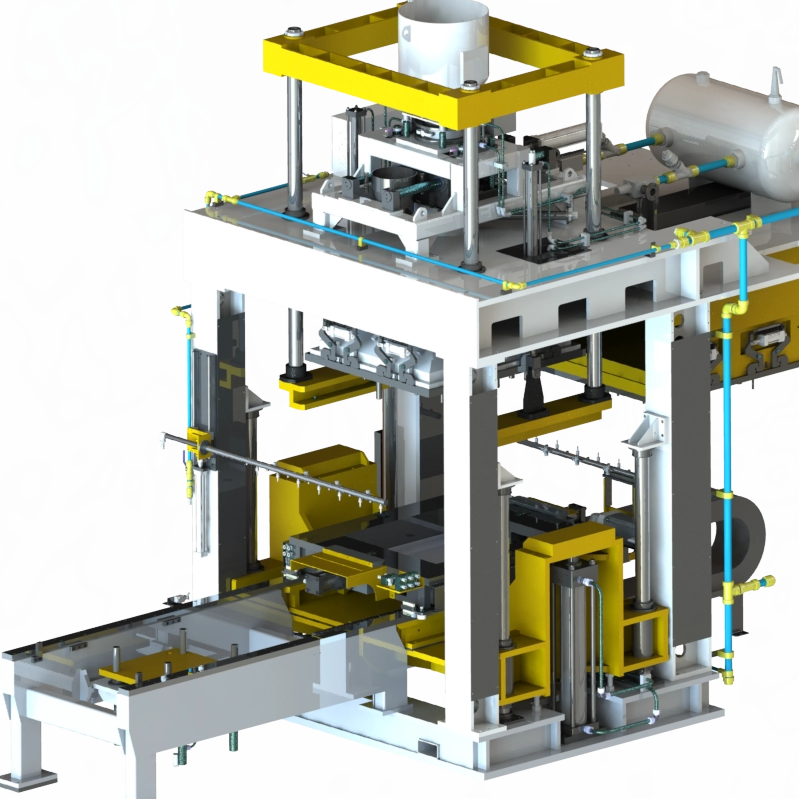

We introduce the Cold Box Core Shooter Machine as the industry standard for high-volume, dimensionally accurate sand core production. It achieves these results without requiring heated tooling. This guide breaks down the mechanical workflow and provides objective comparisons against alternative core making processes. You will also discover the specific technical criteria required to evaluate and specify the right equipment for your facility. We designed this framework to help your team navigate equipment selection confidently.
Process Definition: A Cold Box Core Shooter Machine produces sand cores at room temperature by blowing a resin-sand mixture into a core box and curing it instantly with a catalytic gas (typically an amine).
Primary Advantage: Eliminates the high energy costs and tooling distortion associated with heated core boxes, enabling faster cycle times and superior dimensional stability.
Evaluation Focus: Selecting the right machine requires balancing shooting volume (core weight), parting line orientation (vertical vs. horizontal), and environmental compliance capabilities (gas scrubbing).
Implementation Reality: While energy costs decrease, foundries must invest in robust ventilation and amine gas neutralization systems to maintain safety and compliance.
Understanding the internal mechanics helps operators optimize cycle times and troubleshoot common production errors. The cold box process operates through a highly synchronized sequence of mechanical, pneumatic, and chemical events. We can break this workflow down into four distinct operational phases.
Phase 1: Sand Preparation & Mixing
Silica or specialty sand undergoes preparation before entering the machine. Operators coat the sand grains using a two-part polyurethane resin system. The first part contains a phenolic resin. The second part consists of a polymeric isocyanate. These chemicals remain relatively dormant when mixed at room temperature. The sand mixing system feeds this pre-coated material directly into the machine magazine. Precise resin dosing is critical here. Using too much resin increases production expenses and emissions. Using too little resin compromises the structural integrity of the final core.
Phase 2: Core Shooting (Blowing)
The core shooting phase defines the physical density of your final product. The machine uses controlled compressed air. It injects or "shoots" the sand-resin mixture into an unheated core box cavity. The air acts as a transport medium. It fluidizes the sand and carries it through the blow tubes. Vents inside the core box allow this transport air to escape. The sand grains pack tightly together. This ensures high density and uniform packing across complex geometries. Proper venting design prevents air pockets and loose sand sections.
Phase 3: Gassing and Curing
The magic of the cold box process happens during the chemical curing phase. A specialized generator vaporizes a liquid catalyst. Foundries usually use dimethylethylamine (DMEA) or triethylamine (TEA). The machine pushes this vaporized catalyst through the packed sand inside the core box. The gas acts as a trigger. It initiates an immediate cross-linking chemical reaction between the two resin components. This reaction hardens the entire core in mere seconds. The curing happens at ambient temperature. It does not rely on thermal conduction.
Phase 4: Purging and Extraction
Residual catalyst gas remains trapped inside the porous sand structure after curing. The machine must remove this hazardous vapor. High-pressure purge air blows through the core. It forces the remaining gas out of the tooling and directs it into a dedicated scrubber system. The machine then opens the clamping unit. Automated ejector pins push the core out of the mold. Alternatively, programmable robotic arms remove the fully hardened core. The core is immediately ready for handling, coating, or placement into a mold.
Foundry managers must validate their chosen technology against available alternatives. You must understand how cold-curing compares to traditional thermal methods. We map these differences across four key operational dimensions to provide a clear decision-stage framework.
Thermal core making processes demand continuous heat generation. Hot box and shell core machines rely on electrical heating elements or natural gas burners. They must maintain tooling temperatures between 200°C and 300°C. This constant heating creates massive utility overhead. In contrast, cold box systems operate entirely at room temperature. They eliminate thermal energy demands. You only pay for compressed air, resin, and catalyst generation. This dramatic reduction in utility consumption offers a compelling operational advantage.
Throughput speed heavily influences facility profitability. Cold box curing happens almost instantaneously. A chemical reaction solidifies the sand in seconds. This offers the highest possible throughput for mass production environments. Hot box processes require longer cycle times because heat must conduct through the sand mass. Shell core processes are significantly slower. They rely on thermal curing to slowly build a hardened shell layer by layer. Foundries manufacturing high volumes of engine blocks or automotive components overwhelmingly prefer the rapid cycles of the cold box method.
Extreme thermal cycling destroys tooling over time. Heating and cooling cycles cause metal to expand and contract. This eventually leads to warped core boxes and mismatched parting lines. Hot box tooling requires expensive cast iron or hardened steel to withstand these conditions. Because cold box tooling never experiences extreme heat, it lasts much longer. Foundries can machine these core boxes from aluminum, durable plastics, or even wood for short production runs. They are cheaper to manufacture and maintain their tolerances over hundreds of thousands of cycles.
Dimensional stability directly impacts casting quality. Heat distortion during thermal curing can warp cores as they cool down. Cold box cores offer excellent dimensional stability right out of the box. They cure rigidly inside the mold before ejection. This reduces downstream casting defects. Shell cores often provide superior hollow-core characteristics. They naturally drain uncured sand from the center. However, shell cores achieve this at a much higher tooling expense. A modern Cold Box Core Shooter delivers the best balance of speed and precision.
Process Comparison Chart
Metric | Cold Box Process | Hot Box Process | Shell Core Process |
|---|---|---|---|
Operating Temp | Ambient (Room Temperature) | 200°C - 260°C | 250°C - 300°C |
Average Cycle Time | 10 - 30 Seconds | 40 - 90 Seconds | 60 - 180 Seconds |
Tooling Material | Aluminum, Plastic, Wood | Cast Iron, Steel | Cast Iron, Steel |
Energy Demand | Low (Compressed Air/Pumps) | High (Continuous Heating) | Very High (Continuous Heating) |
Procuring heavy machinery requires mapping equipment features directly to your expected foundry outcomes. Not all machines perform equally under stress. You must evaluate several technical parameters to ensure the equipment meets your exact production demands. Consider these core evaluation criteria.
You must assess the machine’s magazine capacity. Manufacturers measure this parameter in liters or kilograms of sand. Match the maximum shooting volume to your heaviest core requirement. However, never buy a machine matched exactly to your maximum weight. Always factor in a 15% to 20% safety margin. This buffer prevents under-packing. If the magazine empties completely during a shoot, the resulting core will lack density. Low-density cores break during handling or cause metal penetration defects during pouring.
Best Practice: Calculate the volume of your largest multi-cavity core box. Add the volume of the blow tubes and rigging. Then apply the 20% safety margin to determine your minimum required magazine size.
The orientation of the machine determines how the core box opens and closes. This heavily influences your core extraction strategy. Foundries generally choose between two primary designs.
Horizontal parting: The core box splits top and bottom. This configuration works best for flat, widespread cores. It provides excellent accessibility for manual core removal. Operators can easily reach in and lift the core upward.
Vertical parting: The core box splits left and right. This setup is ideal for tall, complex cores. It integrates seamlessly with automated extraction robots. The machine can drop the core onto a conveyor belt or present it perfectly for a robotic gripper.
High-volume foundries cannot afford isolated islands of equipment. Seamless integration is mandatory. Evaluate the machine's Programmable Logic Controller (PLC) architecture. Determine its compatibility with your existing factory networks. Modern facilities utilize communication protocols like Profinet or EtherCAT. The core shooter must communicate constantly with automated sand preparation plants. It needs to signal the mixer when sand levels drop. It must also sync with core handling robots to prevent collision during extraction.
The injection process generates immense internal pressure. Compressed air violently forces sand into the tooling cavity. The machine must hold the two halves of the core box tightly together during this violent phase. Insufficient clamping pressure leads to core flashing. Flashing occurs when sand and resin leak out through the parting line. This wastes expensive resin and requires tedious manual grinding later. Ensure the hydraulic or pneumatic clamping system significantly exceeds the internal injection pressure requirements for your largest planned core box.
Operating chemical curing equipment introduces specific facility challenges. While your energy costs will dramatically decrease, you must redirect attention toward safety protocols. Foundries must adopt transparent, field-tested expertise to manage these implementation realities.
The use of amine gas mandates strict environmental controls. These catalysts are volatile organic compounds (VOCs). They are hazardous and emit a strong, unpleasant odor similar to ammonia. Purchasing a core shooter requires concurrent investment in a highly efficient acid-scrubber system. You cannot run the machine without one. The machine operates under negative pressure. It directs all exhaust air through a ventilation duct into the scrubber. The scrubber uses a dilute sulfuric acid solution. The acid reacts with the alkaline amine gas. This chemical neutralization process converts the gas into a harmless liquid salt. This system ensures total OSHA and EPA compliance.
Cold box tooling avoids thermal distortion, but it faces chemical contamination. Cold box resins naturally leave a microscopic residue behind after each cycle. This buildup accumulates over thousands of cycles. It eventually alters the dimensional accuracy of the tooling. It also causes sticking, where cores refuse to eject cleanly. Operations must factor in regular tooling cleaning cycles. Modern foundries rely heavily on dry ice blasting. This method cleans the tooling quickly without using abrasive materials. Chemical solvent baths offer another effective cleaning route. You must establish strict preventative maintenance schedules to maintain core surface quality.
Standard Maintenance Schedule Matrix
Maintenance Task | Frequency | Operational Purpose |
|---|---|---|
Clean Blow Plate & Vents | End of Every Shift | Ensures consistent sand compaction and prevents air traps. |
Dry Ice Blasting of Tooling | Weekly | Removes resin residue to prevent core sticking. |
Check Scrubber Acid pH | Daily | Guarantees effective neutralization of amine gas emissions. |
Inspect Clamping Seals | Monthly | Prevents parting line leakage and core flashing. |
Temperature and humidity govern chemical reactions. Mixed cold box sand has a limited workable lifespan. Foundries call this duration its "bench life." Once the sand coats with resin, the pre-curing process subtly begins. If the sand sits in the magazine too long, it loses its flowability. Degraded sand creates brittle cores with poor tensile strength. Equipment must pair with precise, on-demand sand mixing systems. You should only mix what you plan to shoot within a narrow time window. High ambient summer temperatures severely shorten this bench life, requiring careful production planning.
Common Mistake: Mixing large batches of sand to save time. This practice guarantees material waste when the bench life expires before the sand can be utilized.
Selecting the optimal equipment demands a strategic approach. You cannot simply buy off-the-shelf machinery. The system must adapt to your unique casting geometry and production constraints. Follow this shortlisting logic to define your next steps.
Start by analyzing your existing production floor. Determine the exact nature of your current limitations. Are your cycle times too slow to meet customer demand? Are your tooling replacement costs destroying your profit margins? Are excessive utility bills shrinking your operational budget? Identifying the primary bottleneck dictates which machine features matter most. If cycle time is your enemy, prioritize advanced robotics integration and rapid gas curing generators.
When contacting manufacturers, vague inquiries yield vague proposals. Provide highly specific data. Send them your maximum core dimensions and expected core weights. Detail your required hourly throughput. Supply them with a map of your available floor space and ceiling height. Finally, share your local municipal emission regulations. This data allows the manufacturer to size the clamping hydraulics, magazine capacity, and scrubber unit correctly.
Never sign a purchase order based on a brochure. Reputable equipment manufacturers should offer run-off testing. Send them your existing core box designs. Ask them to test your specific sand and resin mixture on their showroom machines. This pilot test validates the shooting density. It confirms the projected cycle times. It also highlights any unforeseen extraction issues before final procurement. Real-world data mitigates implementation risk.
A Cold Box Core Shooter Machine represents a highly efficient industrial investment. It trades immense thermal energy expenses for chemical curing precision. This process offers unmatched cycle times and exceptional tooling longevity. It remains the absolute standard for mass-production foundries seeking tight dimensional tolerances.
Successful adoption relies entirely on accurate upfront sizing. You must carefully calculate your required shooting volume and specify adequate clamping force. Furthermore, maintaining a rigorous approach to environmental compliance through acid gas scrubbing is non-negotiable. Modern manufacturing demands both speed and safety.
Take the next step toward optimizing your foundry operations. Gather your largest core box dimensions and current cycle time data. Download a detailed technical specification sheet or review a comprehensive buyer's checklist. Schedule a consultation with an application engineer to evaluate your specific core-making requirements and explore custom automation layouts.
A: Unlike thermal processes requiring expensive cast iron or hardened steel, cold box tooling operates at room temperature. Foundries can machine these core boxes from aluminum, durable plastics, or even wood for short runs. This significantly lowers upfront tooling costs and extends the lifespan of the molds.
A: Depending on the core's volume and complex geometry, the entire gassing and curing phase typically takes between 1 to 15 seconds. This rapid chemical cross-linking makes the cold box process one of the fastest and most efficient core-making methods available globally.
A: While the process primarily produces solid cores, manufacturers can engineer steel mandrels into the core box design to create hollow internal sections. However, this increases tooling complexity and setup time compared to traditional thermal shell core processes.
A: Amine catalysts are hazardous and highly odorous volatile organic compounds. However, modern cold box machines are fully enclosed. They operate under strict negative pressure. This setup directs all exhaust gas to dedicated chemical acid scrubbers, ensuring absolute operator safety and strict regulatory compliance.
