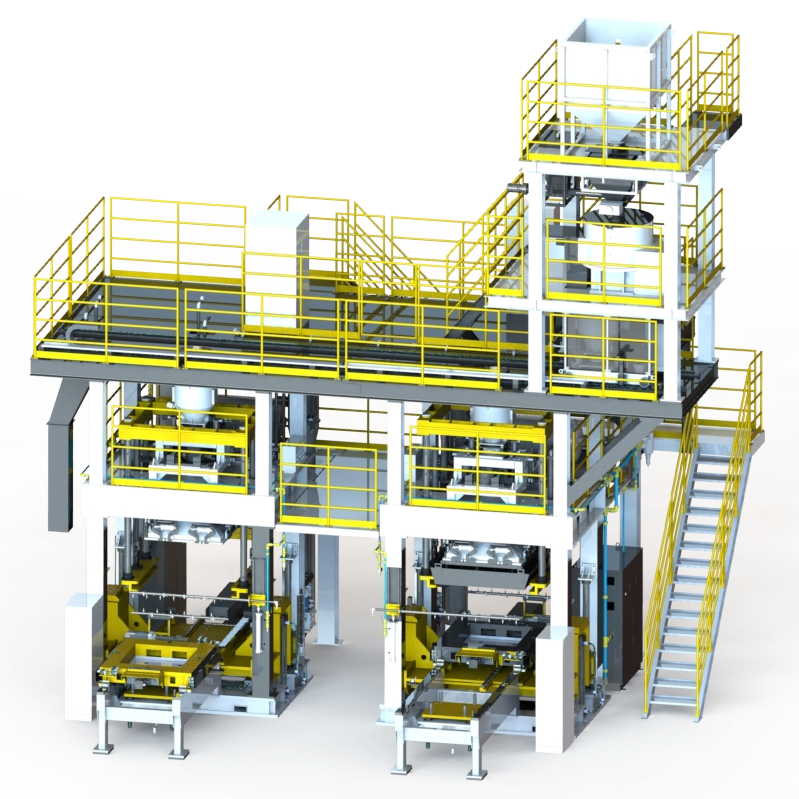

What Maintenance Does a Cold Box Core Shooter Machine Need for Stable Production?

In high-volume foundry operations, the reliability of a core shooting machine directly dictates casting yield. It also drives overall profitability. Core production sits at the very heart of the foundry floor. The cold box process relies heavily on polyurethane resins. It also uses amine gas catalysts. These elements create exceptionally harsh operating conditions. Without a rigorous, preventative maintenance framework, foundries face severe consequences. You will encounter rapid resin buildup. Tooling wear accelerates quickly. Unacceptable downtime becomes the norm.

This guide breaks down the essential maintenance protocols required for stable production. We explore the hidden costs of reactive servicing. You will also learn how to evaluate equipment maintainability before procurement. We provide clear, actionable steps. These practices protect your investments. They ensure your production lines run smoothly.

Key Takeaways

• Predictable Uptime: Implementing structured daily and weekly maintenance routines on a cold box core shooter machine prevents micro-stoppages and expensive tooling damage.

• Chemical & Safety Compliance: Maintenance is inseparable from safety; regular inspection of amine gas extraction and sealing systems is non-negotiable for environmental and operator compliance.

• Procurement Evaluation: When evaluating new equipment, prioritize machines with accessible blow plates, automated diagnostic software, and tool-less maintenance features.

The Business Cost of Reactive Maintenance in Core Production

You must position the core shooter as the true bottleneck of the foundry floor. Production dependencies flow directly from this equipment. If core production halts, the entire molding line starves. This dependency makes reliability crucial. Foundries cannot afford unexpected breakdowns. Reactive maintenance forces you to fix problems only after they cause stoppages. This approach guarantees lost revenue.

Let us examine the financial impact of resin buildup. Neglected resin and sand mixtures harden rapidly over time. They cling to internal machine surfaces. This buildup leads to uneven core density. You will quickly see increased scrap rates. Premature wear on the core box becomes inevitable. Hardened sand acts like sandpaper against expensive tooling. Replacing damaged core boxes drains your maintenance budget. It also wastes valuable production hours.

We must define stable production beyond simple cycle times. True stability relies on Mean Time Between Failures (MTBF). It also requires a low Mean Time To Repair (MTTR). High MTBF means your machine runs longer without issues. Low MTTR means you fix problems quickly when they occur. Reactive maintenance destroys these metrics. A proactive approach transforms uptime into a reliable success criterion. You regain control over your production schedule.

Core Maintenance Requirements for Cold Box Core Shooter Machines

Maintaining a Cold Box Core Shooter Machine requires extreme discipline. You must break maintenance down into predictable intervals. Shift, weekly, and annual protocols form the foundation of stable production.

Shift & Daily Protocols (Preventative)

Daily preventative maintenance stops minor issues from escalating. Operators must perform these tasks consistently.

• Blow Plate and Sand Magazine Cleaning: You must clean the blow plate at the end of every shift. This prevents sand bridging. Bridging blocks the flow of mixed sand into the tooling.

• Visual Inspections: Operators should inspect pneumatic hoses and hydraulic seals daily. Micro-leaks compromise shooting pressure. They also waste expensive compressed air.

• Amine Gas Checks: Check the amine gas generator levels before starting production. Verify the vaporizer functionality. Cold amine liquid will not cure the resin properly.

Weekly & Monthly Protocols (Calibration)

Weekly and monthly tasks focus on system calibration and deep cleaning. These tasks preserve core quality.

• Core Box Vent Maintenance: Inspect core box vents weekly. Clogged vents trap air. They prevent proper sand compaction. We recommend cleaning vents using dry ice blasting. Ultrasonic methods also work well. These industry-standard techniques clean deeply without damaging the mesh.

• Dosing Pump Calibration: You must calibrate the resin dosing pumps monthly. Part A and Part B resins require precise ratios. Keep chemical ratios strictly within a 1-2% tolerance. Incorrect ratios cause brittle cores.

Annual Overhauls (System Integrity)

Annual maintenance ensures long-term mechanical and environmental integrity. Schedule these overhauls during planned plant shutdowns.

• Component Replacement: Replace high-wear pneumatic cylinders proactively. Check all PLC control relays for signs of degradation.

• Environmental Audits: Conduct a full audit of the exhaust and scrubber systems. Scrubber media degrades over time. You must maintain these systems for strict environmental compliance.

Maintenance Frequency Matrix

Addressing Technical Challenges in Shooting and Curing

You will face specific technical challenges during the core making process. Most defects originate during the shooting or curing phases. Proper maintenance eliminates these bottlenecks directly.

Soft core defects often stem from sand compaction inconsistencies. You solve this by maintaining the shooting valve. The shooting valve must open fully and rapidly. Any sluggishness reduces the kinetic energy of the sand. You must also regularly inspect blow pressure regulators. Air leaks drop the actual shooting pressure. This creates weak spots in the sand core. Weak cores break during handling. They also cause metal penetration defects during casting.

Curing presents another major production bottleneck. You must maintain the gassing plate properly. Purge systems need clear pathways. Clogged vents cause uneven amine gas distribution. The gas takes the path of least resistance. If outer vents clog, the core center remains uncured. This extends curing times significantly. Cycle efficiency drops. You lose money every extra second the core stays in the box.

We must face an evidence-oriented reality check regarding process optimization. You might use advanced software simulations like Magmasoft. They optimize shooting parameters brilliantly on screen. They map out perfect venting strategies. However, physical maintenance remains mandatory. You cannot actualize simulated efficiencies using neglected tooling. A blocked vent ruins the most perfectly simulated gas flow. Excellent software requires excellent hardware maintenance.

How to Evaluate a Cold Box Core Shooter for Maintainability

Procurement decisions shape your future maintenance workloads. You should evaluate specific features during the buying phase. Do not just look at cycle times. Look at how easily your technicians can service the equipment.

When sourcing a new Cold Box Core Shooter, prioritize these critical design elements:

1. Design for Serviceability: Evaluate the physical layout. Look for modular components. Can technicians replace a shooting valve in ten minutes? Require easy-access guarding. Guards should open without special tools. Demand quick-change tooling systems. Single-minute exchange of dies (SMED) principles apply here. They reduce changeover times drastically.

2. Automated Diagnostics: Assess the machine HMI (Human-Machine Interface). Does it provide predictive maintenance alerts? We need pressure drop warnings. We need dosing pump anomalies highlighted early. Simple numeric fault codes are useless. The HMI should tell operators exactly what is failing before it breaks.

3. Standardization of Parts: This remains a critical evaluation dimension. Check whether the OEM uses commercially available components. Pneumatic and electrical parts from brands like Festo or Siemens are ideal. Avoid proprietary parts. Hard-to-source parts extend your MTTR significantly. You can buy standard parts from local distributors easily.

These evaluation steps save countless hours later. They simplify your spare parts inventory. They empower your maintenance teams to act quickly.

Implementation Realities, Safety, and Next Steps

Maintenance processes directly overlap with environmental health and safety. You cannot separate them. Amine gas handling poses severe risks. Triethylamine (TEA) and dimethylethylamine (DMEA) act as toxic catalysts. They require extreme respect.

Sealing integrity remains a strict compliance requirement. It is not an optional suggestion. Worn seals leak amine gas into the factory air. Scrubber maintenance ensures this gas neutralizes safely before exhausting outside. You must monitor scrubber acid levels constantly. Replace the chemical media according to OEM guidelines. Ignoring this risks severe regulatory fines. It also harms your workers.

We must state a transparent assumption about workforce readiness. The best machine will fail if operators lack proper training. Operators serve as your first line of defense. They must understand chemical handling. They must master basic daily cleaning routines. Provide them with the right tools. Teach them the "why" behind the cleaning, not just the "how."

You need a logical approach to shortlisting vendors. Recommend shortlisting OEMs based on their Service Level Agreements (SLAs). Fast response times matter. Check the availability of local spare parts. Do they keep critical spares in your country? Finally, ask for historical MTBF data. A confident vendor will gladly share performance data from existing installations. Let their track record guide your final choice.

Conclusion

The stability of a cold box core shooter relies entirely on your mindset. You must treat maintenance as a vital production variable. It is never a secondary task. Excellent maintenance generates excellent castings.

Your final decision matrix must balance two critical factors. First, evaluate the capability of highly automated equipment. Second, honestly assess your internal discipline. You must have the rigor to maintain its chemical and mechanical systems. Automation only works when sensors and valves remain clean.

Take action during your next vendor consultation. Request detailed preventative maintenance schedules upfront. Ask for realistic tooling changeover times. Review their diagnostic software capabilities closely. Equip your foundry with machinery designed for real-world survival. Train your team relentlessly. Protect your uptime through unwavering maintenance discipline.

FAQ

Q: How often should the blow plate on a cold box core shooter be cleaned?

A: You must clean the blow plate at the end of every single shift. The cold box process uses fast-curing polyurethane resins. If left uncleaned, the resin-sand mixture hardens rapidly onto the nozzles. This blocks sand flow, causes bridging, and leads to defective cores during the next shift.

Q: What is the typical lifespan of core box tooling before major refurbishment?

A: Tooling lifespan heavily depends on sand abrasiveness and cycle counts. Generally, aluminum boxes require refurbishment after 50,000 to 100,000 cycles. Iron or steel boxes can last past 300,000 cycles. Improper venting maintenance significantly accelerates wear, as trapped air forces sand to scour the box walls.

Q: How do maintenance requirements differ between cold box and hot box core shooters?

A: Cold box maintenance focuses heavily on chemical management. You must maintain amine gas scrubbers, seals, and two-part resin pumps. Hot box maintenance focuses on thermal management. You spend more time maintaining internal heating elements, gas burners, and thermal insulation to ensure consistent curing temperatures.

Q: What are the signs that the amine gas gassing system needs maintenance?

A: Clear operational symptoms indicate gassing system failure. You will notice lingering amine odors around the machine due to seal leaks. Cores will emerge with soft, uncured centers or brittle edges. Additionally, you may experience unexpectedly long purge cycles required to achieve full curing.
