Views: 0 Author: Site Editor Publish Time: 2026-09-09 Origin: Site
Core shooting technology dictates foundry profitability. It establishes the baseline for cycle times, casting tolerances, and overall energy consumption. The choice of curing process determines how efficiently a facility produces complex internal cavities for metal castings. Foundries face constant tension between achieving high-volume production efficiency and managing the operational complexities of tooling wear, energy demands, and strict environmental compliance.
Selecting the right core production method requires a technical evaluation of hot core box versus cold core box processes. Each system offers distinct mechanical and chemical advantages tailored to specific production environments. Establishing a clear framework helps engineering teams determine exactly when to deploy a Horizontal Hot Box Core Shooter versus a cold box alternative based on casting geometry, required throughput, and facility infrastructure.
Curing Mechanisms: Hot box machines rely on heat and gas to cure sand cores rapidly for high-volume output, whereas cold box machines utilize a chemical reaction (typically amine gas) at room temperature.
Dimensional Accuracy: Hot core processes generally yield superior dimensional stability and surface finish, though they require tooling engineered to withstand continuous thermal stress.
Material Preparation: Cold box systems require precise, on-demand sand and resin mixing prior to injection, contrasting with the stable, pre-coated sands often utilized in heat-cured processes.
Energy and Compliance Trade-offs: Cold box systems reduce energy consumption but introduce stringent chemical handling and ventilation requirements; hot box systems require higher energy input but avoid amine gas complexities.
Equipment Selection: The viability of a Horizontal Hot Box Core Shooter depends on analyzing operational costs, casting geometry, required production throughput, and potential adaptability to emerging inorganic binders.
Defining the baseline requirements for core production dictates the choice of binder system and equipment. Foundries must evaluate tensile strength, collapsibility, and cycle time to determine the optimal path. High tensile strength ensures the core withstands the turbulent flow and immense pressure of molten metal during pouring. If a core lacks sufficient scratch hardness or tensile strength, the metal flow will cause core wash, leading to severe sand inclusions in the final casting.
Collapsibility determines how easily the sand breaks down and shakes out of the final casting after solidification. Aluminum foundries require binders with excellent low-temperature collapsibility, while iron foundries need binders that survive high pouring temperatures before breaking down. Cycle time directly impacts overall production throughput. The selected core shooting process must balance these three criteria against the specific metallurgical demands of the final cast component.
The hot box process utilizes thermosetting resins, typically furan or phenol-formaldehyde based. These resins remain dormant until exposed to high temperatures. Inside the core shooter, the machine injects the sand-resin mixture into core boxes heated between 200°C and 300°C. The heat triggers a rapid cross-linking polymerization reaction, curing the core from the outside in. This thermal activation allows foundries to use highly stable, pre-coated sands. Operators can store this sand for extended periods without degrading, simplifying material handling on the foundry floor.
Conversely, the cold box process relies on polyurethane binders cured via a catalytic gas at ambient temperatures. Operators mix the silica sand with a two-part liquid resin system consisting of a phenolic resin and a polymeric isocyanate. Once the machine injects this mixture into the cold core box, a catalyst gas passes through the sand mass. Foundries typically use an amine vapor or sulfur dioxide for this step. The gas triggers an immediate chemical reaction, hardening the core instantly without heat. Because the mixed sand and resin begin to react slowly even without the gas, cold box applications require immediate, on-demand mixing to prevent the material from hardening prematurely inside the delivery system.
Tooling design diverges significantly between the two processes. Hot box tooling must endure extreme, continuous thermal stress. Engineers typically machine these core boxes from high-grade cast iron or specialized steel alloys designed to manage thermal expansion and resist warping over thousands of heating and cooling cycles. The engineering team must account for the expansion coefficients of the metal to ensure the core dimensions remain exact at operating temperatures. Venting also requires careful planning, as the expanding gases from the heated resin must escape rapidly to prevent gas porosity defects.
Cold box tooling operates at room temperature, eliminating thermal stress entirely. This allows foundries to utilize a wider variety of materials, including aluminum, epoxy resins, or even dense wood for prototyping and lower-volume runs. Aluminum core boxes are significantly lighter, making them easier to handle and faster to machine. This reduces initial tooling investments and accelerates changeover times. However, cold box tooling requires specialized urethane seals along the parting line to prevent the hazardous catalyst gas from leaking during the curing cycle.

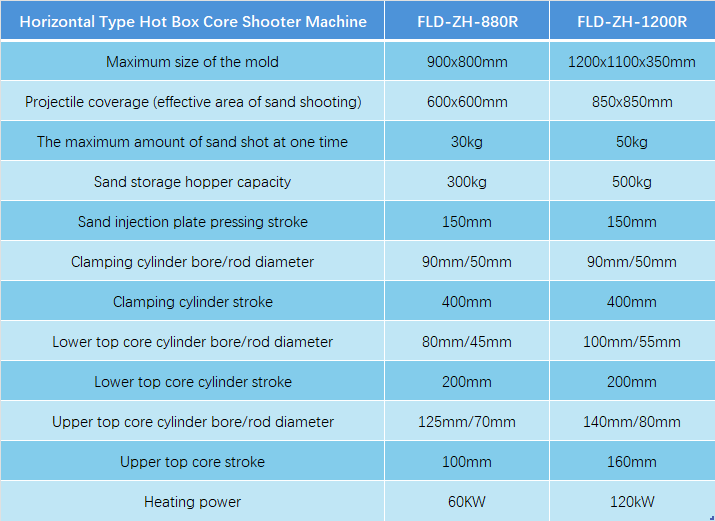

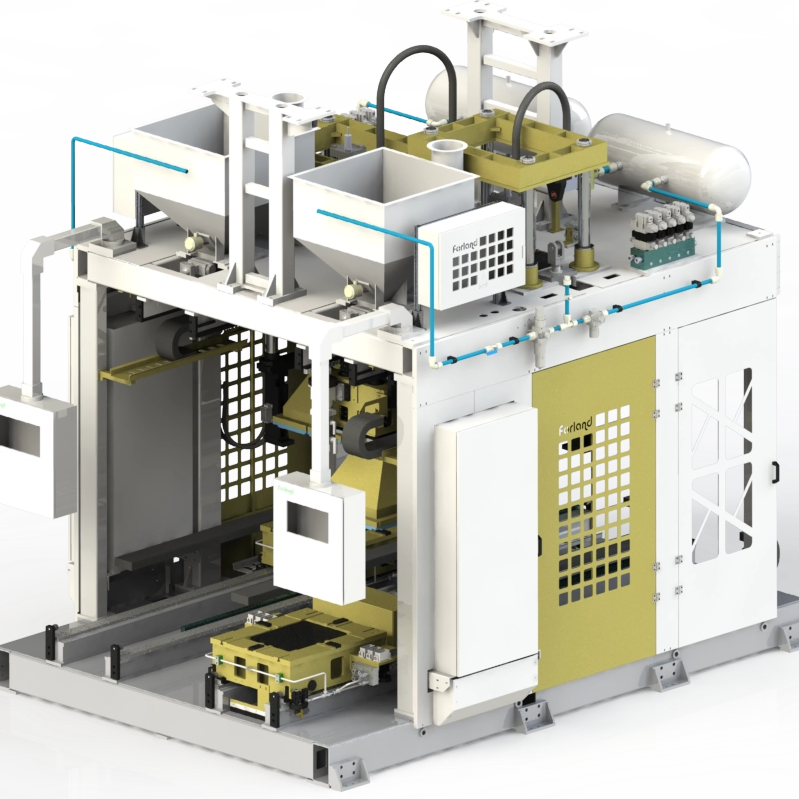

The horizontal parting line configuration fundamentally changes how cores are extracted and handled. In a Horizontal Hot Box Core Shooter, the core box splits horizontally. This orientation leverages gravity during the sand injection phase, promoting uniform density across complex core geometries. The sand magazine lowers onto the blow plate, and compressed air forces the sand through the blow tubes into the heated cavity.
Once the thermal curing cycle completes, the upper half of the box retracts. Automated ejection pins then push the cured core upward, allowing a mechanical unloader or robotic arm to grip the core securely. This horizontal setup integrates seamlessly into continuous, automated casting lines. It minimizes manual handling, reduces the risk of core damage, and keeps the production rhythm highly predictable.
High-pressure hydraulic clamping is non-negotiable in hot box operations. During the shooting phase, compressed air forces the sand mixture into the cavity at high velocity. Simultaneously, the core box expands slightly due to the 300°C operating temperature. The hydraulic system must apply massive, sustained tonnage to keep the core box halves locked together.
If the clamping force wavers even slightly, the injection pressure will force sand between the parting lines, creating flash. Flash requires secondary manual grinding, which destroys production efficiency and increases labor costs. Robust hydraulic cylinders ensure flash-free cores and maintain the structural integrity of the tooling under extreme thermal and mechanical loads. Maintenance teams must regularly check hydraulic fluid levels, pump pressures, and cylinder seals to prevent clamping failures.
In-box curing locks in the core dimensions perfectly. Because the core hardens entirely while still constrained by the precision-machined steel or iron cavity, it undergoes zero distortion during extraction. Green cores produced by other methods are highly susceptible to sagging or warping when handled before fully curing. The hot process eliminates this vulnerability.
The resulting cores feature exceptional surface finish and rigid dimensional stability. This translates directly to tighter casting tolerances and less machining required on the final metal component. Foundries can often apply a refractory core wash directly to the hot core immediately after extraction. The residual heat dries the wash instantly, creating a hard, smooth barrier that prevents metal penetration and further improves the internal surface finish of the casting.
The high-volume efficiency of a Horizontal Hot Box Core Shooter heavily outweighs its initial energy and tooling costs in specific applications. Automotive foundries rely on this technology for engine blocks, cylinder heads, and complex internal water jackets. These components demand absolute dimensional precision to ensure proper coolant flow and engine performance.
Hydraulic valve bodies and ventilated brake rotors also benefit immensely from this process. When producing hundreds of thousands of identical cores, the extended lifespan of cast iron tooling and the rapid cycle times of the hot box process deliver unmatched operational efficiency. The upfront investment in heavy-duty tooling pays off rapidly through reduced scrap rates and continuous, uninterrupted production.
Eliminating the need to continuously heat heavy metal core boxes yields massive operational cost savings. Cold box machines operate at ambient facility temperatures, drawing only the electrical power required for hydraulics, pneumatics, and control systems. Foundries operating in regions with high energy costs often pivot to cold box systems to drastically reduce their utility overhead.
The absence of heating elements also simplifies machine maintenance. There are no thermal couples, heater cartridges, or insulation panels to degrade over time. Operators do not have to wait for the tooling to reach operating temperature before starting a shift, nor do they have to manage the safety risks associated with handling 300°C metal blocks.
The primary operational hurdle of the cold box process is material handling. The sand and two-part resin must be mixed continuously and precisely immediately prior to injection. If the mixed sand sits in the hopper or blow tubes for too long, its bench life expires, and it begins to pre-cure. This leads to clogged blow tubes, poor core density, and extensive machine downtime for cleaning.
Foundries must install high-speed, low-volume continuous mixers directly above the core shooter to ensure the sand is fresh. Maintenance personnel must calibrate the chemical gear pumps daily to ensure the exact ratio of Part 1 to Part 2 resin. A slight deviation in the resin ratio will result in brittle cores or excessive gas generation during pouring. This contrasts sharply with the simpler material handling of hot box processes, where pre-coated sand remains stable indefinitely at room temperature.
The curing mechanism in a cold box machine introduces significant mechanical and safety complexities. After the machine shoots the sand into the cavity, it must clamp the box tightly while injecting a catalytic gas through a manifold. The gas permeates the sand, curing the resin instantly. Following the gas injection, high-pressure purge air forces its way through the core to push out residual amine.
The core box must be perfectly sealed during this phase. Any gap in the parting line will release toxic amine gas into the facility, triggering safety alarms and exposing operators to hazardous chemicals. Engineers must design complex venting systems within the tooling to ensure the gas reaches every extremity of the core, otherwise, the core will have uncured, soft spots that will fail during metal pouring.
The absence of thermal stress allows for rapid tooling changes and lower initial investments. Foundries handling short-to-medium production runs, or those acting as job shops for various clients, benefit greatly from cold box flexibility. CNC machinists can cut aluminum tooling in a fraction of the time it takes to machine cast iron.
Furthermore, the lighter weight of aluminum core boxes means operators can perform tooling changeovers faster. They can utilize smaller cranes and exert less physical effort, thereby increasing the machine's overall uptime for varied production schedules. When a foundry needs to produce a small batch of replacement parts, cold box tooling provides the most economical path to production.
While often categorized together, shell core shooters and hot box machines serve different production strategies. A shell core machine uses heat to cure a thin shell of resin-coated sand against the cavity wall, then drains the uncured sand from the center, producing a hollow core. This saves significant sand weight and improves collapsibility during shakeout.
However, the curing cycle for shell cores is notably longer, as the heat must penetrate slowly to build the required shell thickness. The dump box mechanics also add time to the cycle. In contrast, a Horizontal Hot Box Core Shooter produces solid, high-strength cores rapidly. It prioritizes cycle time and structural rigidity over sand conservation, making it the better choice for high-pressure casting environments.
Environmental regulations are driving the evolution of heat-cured core processes. Foundries are increasingly adapting hot box equipment to run warm box or inorganic binders. The warm box process utilizes highly reactive resins that cure at lower temperatures, typically between 150°C and 180°C. This reduces energy consumption and lowers Volatile Organic Compound (VOC) emissions on the foundry floor.
Inorganic binders, often based on sodium silicate, use heat to drive off water, curing the core through dehydration without any organic combustion. This completely eliminates smoke and toxic emissions during the metal pouring phase. Adapting existing hot box machinery to run inorganic binders allows foundries to achieve strict environmental compliance while maintaining the dimensional benefits of heat-cured cores. However, inorganic cores are highly susceptible to humidity, requiring climate-controlled storage to prevent degradation before pouring.
Production throughput hinges on the speed of the curing cycle. Hot box machines excel in sheer speed. The moment the sand hits the heated cavity, curing begins. For smaller cores, the machine can complete the cycle in under 30 seconds. The operator or robot extracts the core, and the machine immediately shoots the next cycle.
Cold box systems, while fast to cure chemically, require sequential steps: shooting, gas injection, and air purging. The purging phase is absolutely necessary to remove residual toxic gas before the box opens. This adds fixed time to every cycle, often pushing cycle times to 60 or 90 seconds depending on core size. For continuous, high-volume runs, the rapid, heat-accelerated cycles of hot box machines generally yield higher daily output.
Evaluating the financial viability of either system requires looking beyond the initial machine purchase. Hot box systems demand high electrical or gas energy to maintain tooling temperatures, and the cast iron tooling itself is expensive to machine. However, the binder chemicals are generally less expensive, and the process requires minimal auxiliary equipment.
Cold box systems save on heating energy and tooling, but incur high ongoing costs for the two-part polyurethane resins, the amine gas, and the continuous sand mixing equipment. Additionally, scaling a cold box operation requires expanding the chemical storage and gas scrubbing infrastructure. Foundries must calculate their local utility rates against chemical supply costs to determine the true operational expense of each method.
EHS factors often dictate the final technology choice. Hot box resins release VOCs during the curing phase and generate significant smoke and fumes when the molten metal contacts the core during pouring. Foundries must install robust extraction hoods and baghouses to manage these emissions and protect worker respiratory health.
Cold box processes eliminate pouring smoke but introduce the severe hazard of handling, storing, and neutralizing toxic amine gases. Amine requires dedicated, acid-based chemical scrubbers to clean the exhaust air before it leaves the facility. Both systems require substantial EHS infrastructure, but they manage entirely different types of hazards. Facility managers must assess their current ventilation capabilities before committing to either process.
Feature | Horizontal Hot Box Core Shooter | Cold Box Core Shooter |
|---|---|---|
Curing Catalyst | Thermal (200°C - 300°C) | Chemical Gas (Amine / SO2) |
Tooling Material | Cast Iron, Steel | Aluminum, Epoxy, Wood |
Sand Preparation | Pre-coated, stable sand | On-demand, continuous mixing |
Energy Consumption | High (Continuous heating) | Low (Ambient operation) |
Primary EHS Hazard | VOCs and pouring smoke | Toxic gas handling and leaks |
Ideal Production Run | High-volume, continuous | Short-to-medium, flexible |
Core Storage Life | Excellent (Resists humidity) | Moderate (Can degrade over time) |
Maintenance Focus | Burners, thermocouples, hydraulics | Resin pumps, gas scrubbers, seals |
The primary mechanical risk in hot box operations is thermal fatigue. Constant expansion and contraction can cause cast iron core boxes to warp, leading to flash and dimensional inaccuracies. Foundries must implement strict maintenance protocols to combat this. This includes regularly monitoring heating element degradation using thermal imaging to ensure uniform temperature distribution across the core box.
Uneven heating causes localized warping and cold spots where the sand fails to cure. Maintenance teams must replace faulty cartridge heaters or clear clogged gas burners immediately. Additionally, implementing controlled cooling procedures during machine shutdowns prevents rapid thermal shock to the tooling. Operators should never spray water on hot tooling to cool it down, as this will crack the cast iron instantly.
Failing to manage amine gas effectively poses severe health risks and regulatory fines. Cold box implementation requires flawless engineering of the gas extraction system. Core boxes must feature high-quality elastomeric seals that operators inspect daily. If a seal degrades, gas will escape during the injection phase.
The facility must install mandatory acid-scrubber systems—typically using sulfuric acid—to neutralize the amine exhaust. Maintenance teams must monitor the pH levels of the scrubber solution continuously. If the acid depletes, toxic gas will vent directly into the atmosphere, leading to immediate facility evacuation and EPA violations. Routine inspection of the ductwork for resin buildup is also necessary to prevent airflow blockages.
The technical competencies required for operators vary drastically between the two systems. Hot box operators require training focused on high-temperature safety, burn prevention, and managing heavy, thermally expanded tooling. They must understand how to safely handle hot cores and troubleshoot heating element failures using multimeters.
Cold box operators require intensive hazardous material (HAZMAT) training. They must understand chemical handling protocols for isocyanates and amines, know how to respond to gas leak alarms, and be proficient in maintaining the calibration of continuous sand mixers. Proper Personal Protective Equipment (PPE), including respirators and chemical-resistant gloves, is mandatory when performing maintenance on cold box resin pumps or gas manifolds.
Conduct an operational expense analysis comparing local energy rates against chemical binder and gas scrubbing costs to determine long-term financial viability.
Request detailed cycle-time simulations from equipment manufacturers based on your specific, most complex core geometries to verify production throughput.
Audit your current EHS infrastructure to determine if your facility is better equipped to handle thermal emissions or hazardous chemical storage.
Evaluate your tooling lifecycle requirements to see if the upfront cost of cast iron tooling is justified by your expected production volumes.
Test core collapsibility and tensile strength requirements with your metallurgical team to ensure the chosen binder system matches your pouring temperatures.
A: Hot core machines use heat (200°C–300°C) to cure thermosetting resins, requiring metal tooling and high energy. Cold core machines use a chemical catalyst gas (like amine) to cure polyurethane binders at room temperature, saving energy but requiring strict chemical handling.
A: It cures the sand core completely inside a precision-machined, heated metal cavity. Because the core is fully hardened before extraction, it suffers zero distortion or sagging during handling, ensuring exact dimensions for complex castings.
A: A shell core shooter cures only the outer layer of sand, draining the uncured center to produce a hollow, lightweight core. A hot core shooter cures the entire sand mass rapidly, producing a solid, highly rigid core for faster cycle times.
A: Cold box machines require perfectly sealed core boxes and dedicated acid-scrubber ventilation systems. The scrubbers use acid to neutralize the toxic amine or SO2 gas purged from the core box before the exhaust is released into the atmosphere.
A: Hot box processes generally offer faster cycle times for continuous production. The thermal curing is immediate upon injection, whereas cold box systems require additional time for gas injection and mandatory air purging sequences.
A: Yes. Foundries frequently adapt hot box equipment by lowering the operating temperatures for warm box resins or utilizing water-based inorganic binders. This maintains dimensional accuracy while significantly reducing VOCs and pouring smoke.
