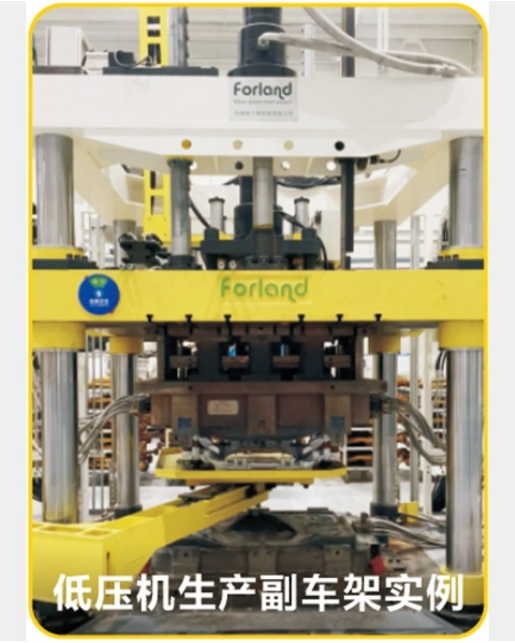

Forland’s hydraulic low-pressure die casting machine is designed for efficient aluminum casting. It operates at low pressure and is suitable for a wide range of applications in foundries and automotive component manufacturing. The machine is simple to operate and improves user accessibility.
Forland offers a comprehensive service including casting planning, mold design and machine installation. Our after-sales support includes engineering services to ensure optimal operation and maintenance.
Key specifications include a maximum mold installation size of 1100 x 1100 x 800 mm, and adjustable cylinder flow and pressure. The machine has hydraulic motors for lifting and moving, and temperature control accuracy of ±1 degree.
The machine is a reliable choice for the foundry industry, delivering high-quality results and improving overall productivity in aluminum alloy casting.
| Parameter | Value |
|---|---|
| Maximum Mold Installation Size | 1100 x 1100 x 800 mm |
| Side Cylinder Maximum Distance | 1100 x 1100 mm |
| Moving Plate Stroke | 450 to 1650 mm |
| Upper Cylinder Closing Force | 121 kN |
| Upper Cylinder Opening Force | 154 kN |
| Side Cylinder Closing Force | 93 kN |
| Side Cylinder Opening Force | 113 kN |
| Adjustable Cylinder Flow and Pressure | Yes |
| Insulation Furnace Capacity | 500 kg |
| Operating Modes | Semi-automatic and manual |
| Furnace Lifting and Moving | Hydraulic motor driven |
| Temperature Control Accuracy | ±1 degree |
| Melting Rate | 200 kg/hour |
| Motor Type | Servo motor |
Features of the Hydraulic Low Pressure Die Casting Machine
Advanced mold cooling system: The water cooling system uses imported proportional valves with high precision and multiple control channels, which can be adjusted according to process requirements to ensure that all casting areas obtain ideal cooling effects.
Integrated production line configuration: The production line consists of four low-pressure die-casting machines.This configuration ensures high productivity and flexibility. Each machine is equipped with a complete aluminum liquid handling system to maintain metal purity.
Efficient cooling system: The cooling system operates efficiently and quickly takes away heat from the casting, which helps to maintain dimensional stability and reduce deformation during the casting process.
Stable mold opening and closing mechanism: The mechanism adopts a four-guide column structure driven by a servo pump. This design ensures smooth acceleration and deceleration, improves mold locking accuracy, and extends the service life of molds and equipment.
Efficient furnace changing system: The furnace changing system is driven by a full-stroke servo motor to achieve automatic operation, greatly improving production efficiency while reducing manual intervention and potential errors.
Material monitoring and weighing function: The furnace changing station includes a weighing function to monitor the use of aluminum in real time. This ensures accurate material consumption and effective cost control throughout the casting process.
Advantages of the Hydraulic Low Pressure Die Casting Machine
Suitable for medium and large castings: Designed for aluminum castings for agricultural machinery and automotive parts.
Energy-saving servo motor: The servo motor improves efficiency while reducing power consumption.
Automation control system: Adopting Siemens PLC and HMI, it has a high degree of automation and is easier to operate.
High-precision pressure system: The liquid level pressure system ensures a high pass rate of castings and improves product quality.
Stable full hydraulic drive: The full hydraulic system provides stable and efficient performance during the casting process.
Comprehensive 16-channel cooling: The cooling system meets the production needs of most aluminum castings and improves versatility.
Standard model for fast delivery: As a standard machine, it provides short delivery time and excellent after-sales service.
Applications of the Hydraulic Low Pressure Die Casting Machine
Foundry Industry: Widely used in various applications in the foundry field.
Automotive Parts Manufacturing: Suitable for the production of high-quality automotive parts.
Agricultural Machinery Parts: Suitable for the manufacture of agricultural machinery parts.
Medium to Large Aluminum Castings: Suitable for a range of applications requiring medium to large castings.
1. What is a hydraulic low-pressure die casting machine?
Hydraulic low-pressure die casting machines are designed to cast metals, especially aluminum, using low-pressure casting with high precision and good quality.
2. What are the main advantages of this machine?
This machine is suitable for medium and large aluminum castings. It features energy-saving servo motors and automated Siemens PLC and HMI control systems.
3. What industries can benefit from this machine?
FAQs of Hydraulic Low Pressure Die Casting Machine
Hydraulic low-pressure die casting machines are ideal for the foundry industry, automotive parts manufacturing, and agricultural machinery production.
4. What types of aluminum castings can this machine produce?
It is designed for medium and large aluminum castings, including agricultural machinery parts and automotive parts.
5. What support does Forland provide after purchase?
Forland provides excellent after-sales service, including engineering support and maintenance assistance.
