Forland is a specialist manufacturer of tilting gravity die casting machines for foundries. As die casting machines, we offer high-quality solutions with customisable parameters, long die strokes and automation options to meet diverse production needs.
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description


Forland's tilting gravity die casting machine is designed for efficient metal casting. The machine is suitable for various industries that require high-quality castings.


It operates as a gravity die casting machine. The product is brand new and ready for immediate use.


The maximum die thickness of the machine is 800 mm. The minimum die thickness is 200 mm, which allows for production flexibility.


The injection force is powerful, rated at 176 kN. The injection stroke is 200 mm, ensuring precise casting.


It has a voltage of 380V and is compatible with standard electrical systems. The machine is rated at 22 kW for strong performance.


Forland provides online after-sales service support. Customers receive a mechanical test report and inspection video after the factory inspection.


The tilting gravity die casting machine is certified to ISO9001 standards, ensuring quality and reliability. Custom sizes are available to meet specific needs in terms of weight and size.


Product Parameters


Parameter Value
Machine Type Die Casting Machine
Factory Video Inspection Provided
Mechanical Test Report Provided
Core Component Engine
Product Condition Brand New
Main Selling Point Sustainable
Applicable Industry Other
Showroom Location None
Maximum Mold Thickness (mm) 800 mm
Minimum Mold Thickness (mm) 200 mm
Injection Force (kN) 176 kN
Injection Stroke (mm) 200 mm
Brand Name Dingtai
Voltage 380V
Size (Length x Width x Height) Custom Available
After-Sales Service Online Support
Power 22 kW
Weight Custom Size
Certification ISO9001


Features of Tilting Gravity Die Casting Machine for Foundry


Full Hydraulic Drive: The machine adopts a full hydraulic drive system. The hydraulic components are imported from Japan and have high reliability.


Adjustable Tilt Angle: The tilt angle can be set between 0° and 90°. This flexibility allows the use of various casting techniques.


Variable Tilt Speed: The tilt speed can be adjusted within the range of 10° to 14 seconds per 10°. Multi-level speeds can be set for different casting processes.


User-Friendly Interface: It has an easy-to-operate human-machine interface. Users can enter data and set various process parameters through the menu.


Wide Operating Temperature Range: The machine operates efficiently at temperatures between 0°C and 40°C. Suitable for high-temperature environments with dust and metal splashing.


Dual Pump Cylinder Interface: The design includes two reserved pump cylinder interfaces. This facilitates easy installation and replacement of molds.


Advantages of Tilting Gravity Die Casting Machine for Foundry


Gravity Filling Mechanism: The machine utilizes metal gravity to fill the mold. This ensures efficient and precise casting.


User-Friendly Operation: It has simple operating controls. The long mold lifting stroke improves efficiency while keeping costs low.


Customizable Parameters: Users can set various casting parameters through Siemens HMI and PLC. This allows for flexible operation according to production needs.

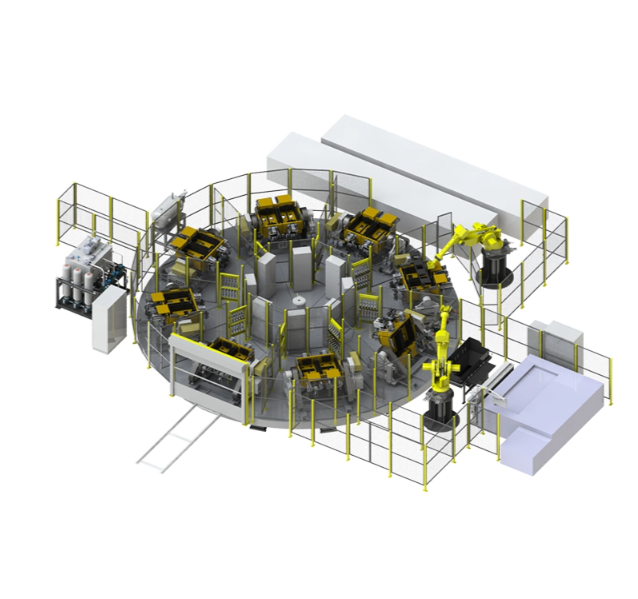

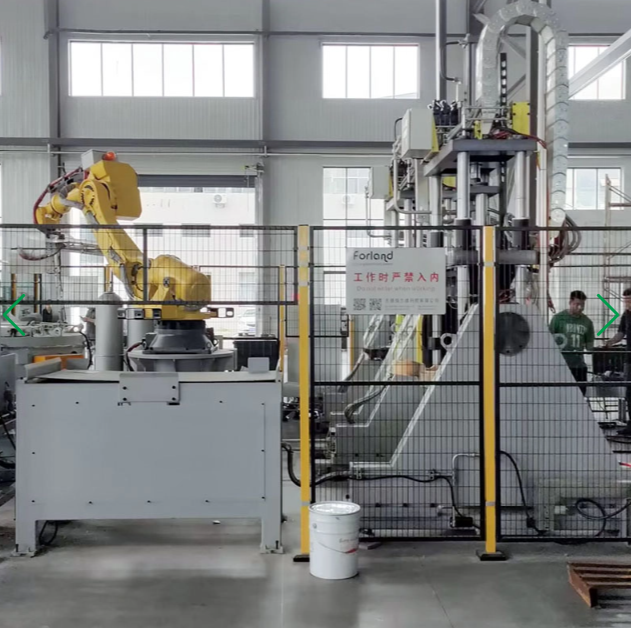

Automation Capability: The tilting gravity die casting machine can be combined with one or two robotic arms. This integration enables automation and significantly reduces labor costs.


Versatile for Aluminum Castings: It is suitable for producing a variety of aluminum castings. Popular applications include intake manifolds, brackets, and key components.


Applications of Tilting Gravity Die Casting Machine for Foundry


Manufacturing Plants: Ideal for plants that require efficient metal casting solutions.


Foundry Industry: Ideal for foundries that focus on producing high-quality aluminum parts.


13


FAQs of Tilting Gravity Die Casting Machine for Foundry


1. What is a Tilt Gravity Die Casting Machine?


A Tilt Gravity Die Casting Machine is a metal casting machine that uses gravity to fill the mold with molten metal. It is typically used to produce high-quality castings with precise dimensions and surface finish. The machine is versatile and efficient, and is suitable for a variety of industries, especially for casting aluminum parts.


2. What is the maximum and minimum mold thickness supported by the machine?


The maximum mold thickness supported by the Forland Tilt Gravity Die Casting Machine is 800 mm, and the minimum mold thickness is 200 mm, providing flexibility for a variety of casting projects.


3. What is the injection force and injection stroke of the machine?


The machine has an injection force of 176 kN and an injection stroke of 200 mm, ensuring precise and controllable casting of high-quality products.


4. Is there any after-sales support for the Forland Tilt Gravity Die Casting Machine?


Yes, Forland provides online after-sales support, as well as mechanical test reports and inspection videos after factory inspection to ensure the quality and performance of the machine.


5. Is the Forland Tilt Gravity Die Casting Machine certified?


Yes, the machine is certified to ISO9001 standards, ensuring it meets high quality and reliability standards.
